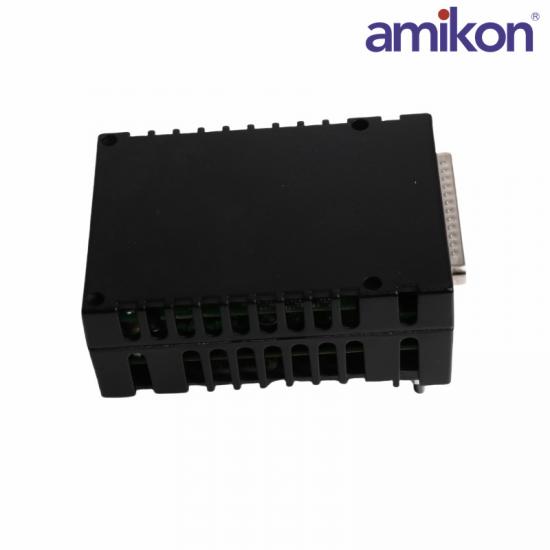

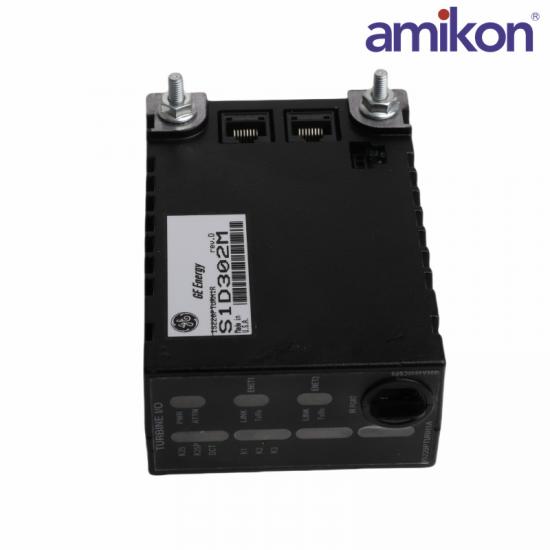

The IS220PTCCH2B Turbine Control is a Mark VIe I/O pack. One or more I/O pack modules digitize the sensor signal and feed it to the controller. Every I/O pack has Dual 100MB full-duplex Ethernet Ports. This is mostly used with the GE Speedtronic Mark VIe series. In addition, the Mark VIe is a flexible platform for multiple applications. It also provides high-speed networked I/O for simplex, dual, and triple-redundant systems.IS220PTCCH2B is a multiple PCB module with multilayer PCB populated with SMD components.

IS220PTCCH2B  modules are very reliable and so less prone to damage. But the improper handling and poor storage can affect the module’s functionality, so we recommend keeping the module in static sensitive storage boxes in recommended conditions.

The GE IS220PTCCH2B is a versatile analog I/O module specifically designed for GE's Speedtronic Mark VIe series, supporting turbine control across various industrial applications, including gas, steam, and wind turbines. This module plays a critical role in asset management systems for power plants, deep-sea drilling, desalination, and natural gas compression.

The IS220PTCCH2B features robust data processing and transmission functionalities, essential for monitoring and controlling complex industrial processes. It includes multi-channel analog inputs, which are useful for processing a variety of signal types, such as voltage, current, and mV inputs, allowing it to represent various physical quantities like temperature, pressure, and flow.

This IS220PTCCH2B module supports thermocouple types E, J, K, S, and T, as well as millivolt input ranges from -8 mV to 45 mV. This flexibility makes it suitable for different environmental conditions and measurement needs, such as grounded and ungrounded configurations, with an allowable distance of up to 984 feet from the turbine I/O panel, optimizing signal integrity and installation options.

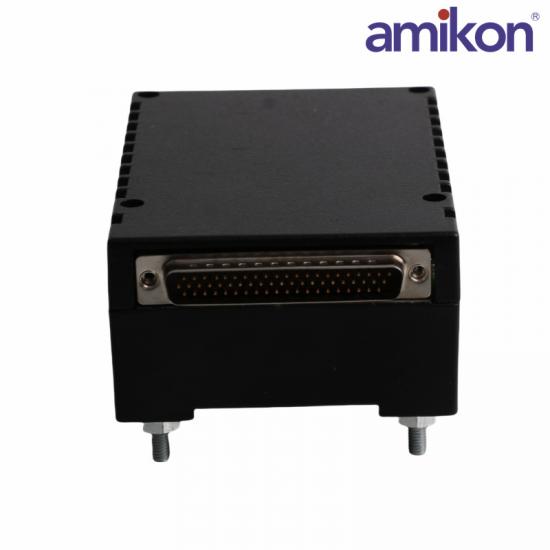

In terms of connectivity, the IS220PTCCH2B module can interface through Ethernet, Modbus, and Profibus, allowing seamless integration with other devices and control systems. The module communicates with field devices via a DC-37 pin connector, ensuring compatibility with a range of control architectures, and includes LED indicators for diagnostics and status monitoring.
