Model: IS220PVIBH1AL

Function: Vibration monitoring

System: GE Mark VIe / Mark VIeS compatible

Inputs: 6 vibration, 2 seismic/dynamic pressure

Channels: 8 analog input channels

Temp Range: -40°C to +70°C

Humidity: 5% to 95% RH, non-condensing

Software: ToolboxST compatible

Certifications: CE, UL, CSA, RoHS

IS220PVIBH1AL is manufactured by GE, it is belong to Mark Vie series Vibration I/O Pack. The IS220PVIBH1AL (PVIB for short) vibration monitoring module contains a local processor and data acquisition board, which are housed in an I/O pack. Either one or three I/O packs can be mounted on the TVBA terminal board, to provide either Simplex or TMR module redundancy. The TVBA provides two 24-point, barrier-type terminal blocks that accept two 3.0 mm2 (#12AWG) wires with 300 V insulation and spade or ring type lugs.

Captive clamps are provided for terminating bare wires. Signal flow between the terminal blocks and the I/O packs is conditioned with passive suppression circuits and electromagnetic interference protection. In addition, a pull-up bias is applied to signals for open circuit fault detection.

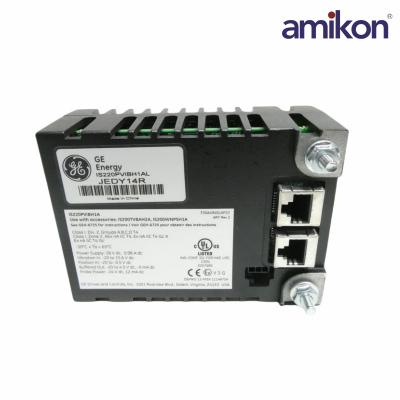

The PVIB can monitor 13 sensors, and has the flexibility to mix sensor types based on specific channel configuration and PVIB processor type. The I/O pack has two RJ-45 Ethernet connectors, one 3-pin power input, and a DC-37 pin connector that connects directly to the TVBA terminal board. Visual diagnostics are provided through indicator LEDs.

IS220PVIBH1A can be mixed on a TMR module. In this mixed TMR configuration, all three I/O packs must be upgraded to firmware version 5.01 or later. In addition, there are manual steps needed to correct some existing configuration because of the additional GAP12 capabilities that are introduced in firmware version 5.01.
