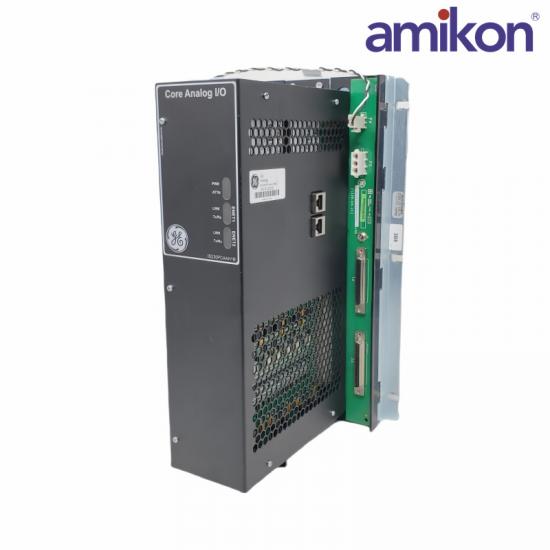

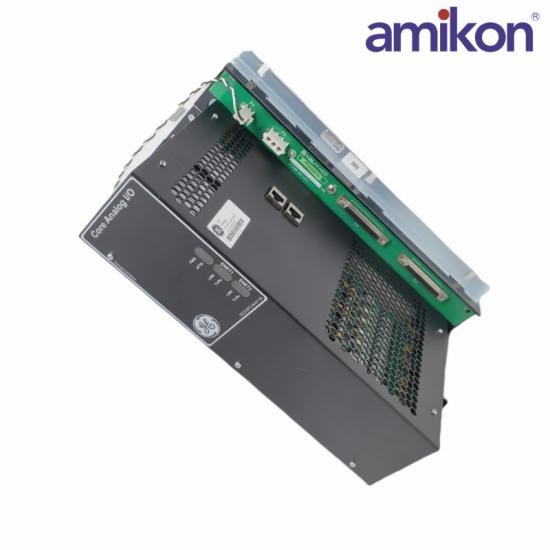

IS230PCAAH1B is a Core Analog I/O Module manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. A sizable amount of the analog signal I/O needed to run a gas turbine is provided by the Core Analog (PCAA) module and related Core Analog (TCAS and TCAT) terminal board. Thermocouple, 4-20 mA current loop, seismic, linear variable differential transformer (LVDT) excitation and inputs, pulse rate, and servo coil outputs are all provided by PCAA and TCAT. IS230PCAAH1B In simplex, dual, and TMR systems, PCAA is applicable. To one, two, or three linked PCAA modules, a single TCAT terminal board fans signal inputs. In addition to the terminals on PCAA and TCAT, a nearby JGPA board also has shield ground and 24 V field power connectors.

Part Number: IS230PCAAH1B

Manufacturer: General Electric

Series: Mark VIe

Product Type: I/O Module

IS230PCAAH1B Number of Inputs: 25

Number of Outputs: 4-20 mA

Analog 0-10 V DC Inputs: ±0.50%

LVDT Excitation Monitor Input: ±1.00%

Servo Driver Output: ±3.50%

Power Supply Input Voltage: 28Vdc±5%

IS230PCAAH1B Size: 33.02cm high x17.8 cm wide

Operating Temperature: -30 to 65oC

Product of Origin: U.S.A

The GE IS230PCAAH1B Core Analog I/O Module is a versatile component within GE's Mark VIe control system, primarily designed to handle both analog input and output functions within industrial applications. This module is key in systems requiring precise signal conversion and control, converting analog signals from the physical environment (such as voltage or current) into digital signals for processing within the control system. Conversely, it sends digital signals back to equipment to control various process parameters.
