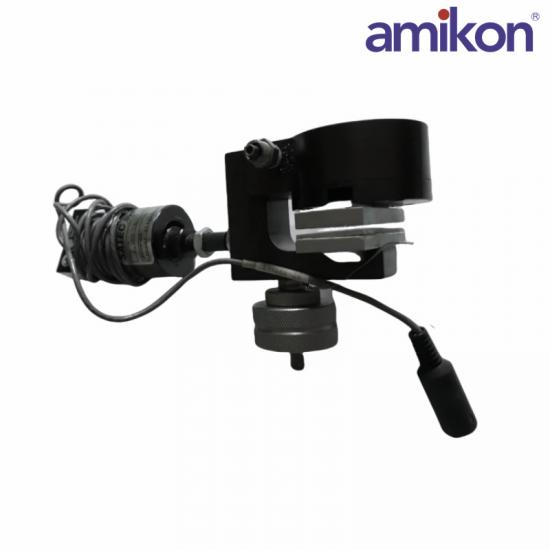

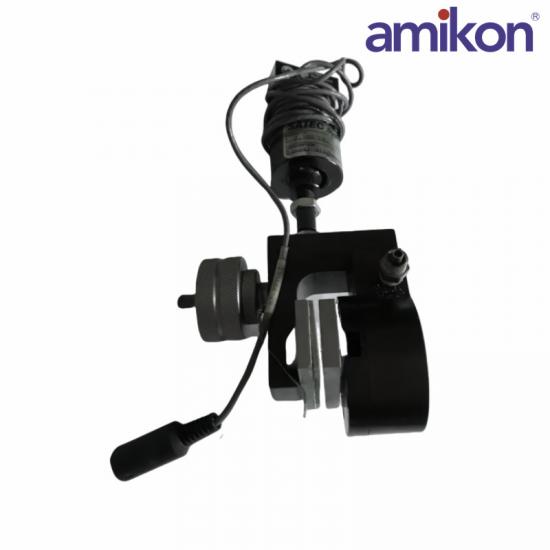

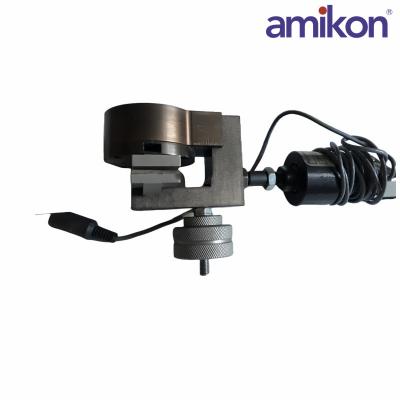

The GE MLP50 Transducer Load Cell is a high-performance force measurement device commonly used in industrial and commercial applications to measure the weight or force acting on an object.

The MLP50 is particularly suited for environments where precision, robustness, and versatility are essential.

Technical Specifications:

Load Capacity:0-50 kg to several tons

Output Signal: 4-20mA output

Excitation Voltage:10 V DC to 12 V DC

Accuracy: 0.1% to 0.2% of the full scale.

Operating Temperature: -40°C to +85°C.

Compensated Temperature Range: -10°C to +40°C.

Input resistance: 350 ohms

Output resistance: 350 ohms.

Output Impedance:350 ohms

Non-linearity:<±0.03% of full scale

Creep:<±0.03% of full scale per 30 minutes.

Excitation Voltage Range:10-15V DC.

Signal Output:0-10mV/V (for analog signals) or 4-20mA for higher-level outputs.

It MLP50 features built-in temperature compensation to ensure stable performance over a wide temperature range, ensuring consistent readings under different environmental conditions.

Often rated with IP67 or IP68, ensuring protection against dust, moisture, and water ingress, making it ideal for challenging industrial conditions.

The MLP50 load cell provides an analog output, typically in the form of a voltage signal or 4-20mA, which can be processed by data acquisition systems, controllers, or displays for monitoring and control purposes.

Designed for simple installation and integration into industrial control systems, the MLP50 is compatible with a variety of signal processing units, display systems, and control equipment.
