Model: PCI-5565PIORC-110000

Interface: PCI, 32-bit / 66 MHz

Memory: Up to 256 MB reflective memory

Data Rate: 2.12 Gbaud (fiber optic)

Latency: <2.5 μs per node

Max Nodes: 256

Transmission: Multi-/single-mode fiber

OS Support: Windows, Linux, VxWorks, QNX

Form Factor: Standard PCI

Temperature: 0 °C to +55 °C (operation)

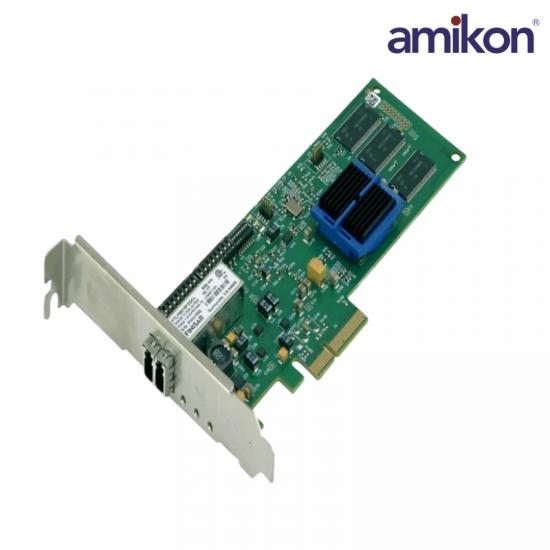

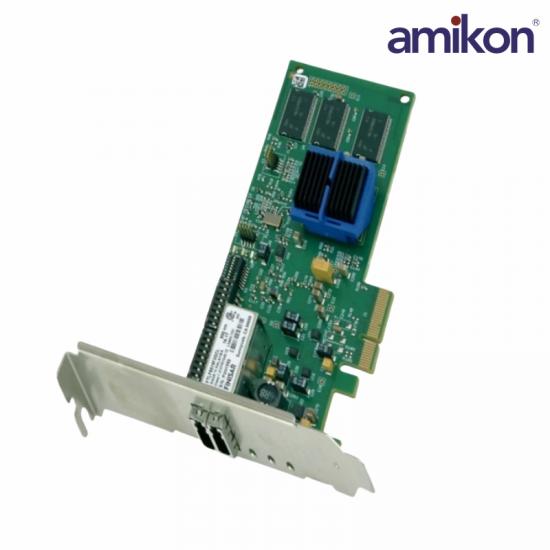

The PCI-5565PIORC-110000 Acquisition Card provides a high-speed, low latency, deterministic interface that allows data to be shared between up to 256 independent systems (nodes) at rates up to 170 Mbyte/s.  Each Reflective Memory board may be configured with 128 MB or 256 MB of onboard SDRAM. The local SDRAM provides fast Read access times to stored data.  Writes are stored in local SDRAM and broadcast over a high speed fiber-optic data path to other Reflective Memory nodes.  The transfer of data between nodes is software transparent, so no I/O overhead is required.  Transmit and Receive FIFOs buffer data during peak data rates to optimize the host computer and bus performance to maintain high data throughput.  PCI-5565PIORC-110000 is RoHS compliant.  It has improved PIO read performance and firmware that can be upgraded in the field.
