Dimensions: 20.5x13.5x29.5cm

Weight: 3.56kg

Time Delay：<200 ms

Dropout Level：102 to 104% of pickup

Input Current：18 mA

Full Description:The 369-HI-0-0-0-0 is a motor management digital relay of the 369 Multilin series. Specifically this series is made to monitor and provide protection for three phase motors and the mechanical systems of the motors. The 369-HI-R-M-0-0 is designed to measure the cooling rate of the motor in addition to the time needed to accelerate to full function and the motor inrush current value.

369-HI-0-0-0-0

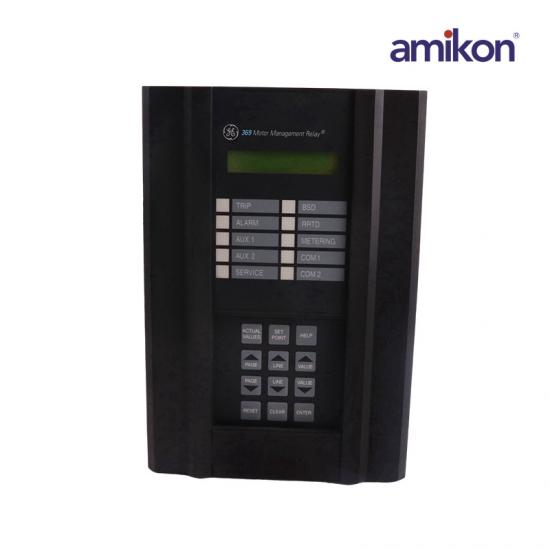

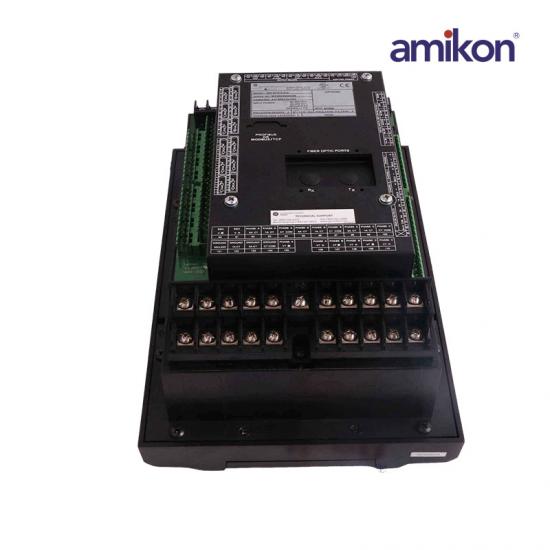

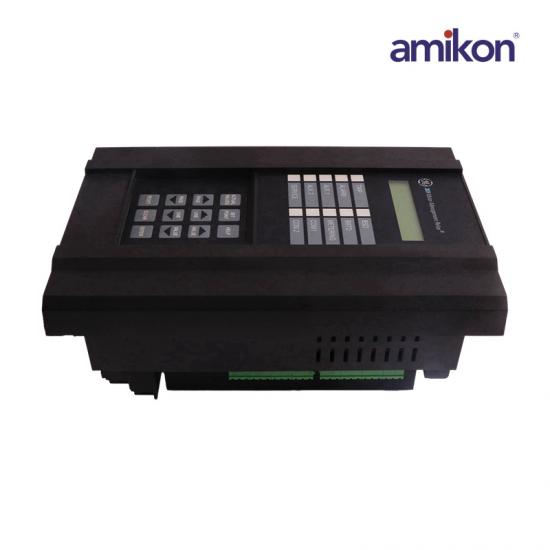

The 369-HI-0-0-0-0 PROTECTION RELAY is a digital relay that provides protection and monitoring for three phase motors andtheir associated mechanical systems. A unique feature of the 369 is its ability to ‘learn’ individual motor parameters and toadapt itself to each application. Values such as motor inrush current, cooling rates and acceleration time may be used toimprove the 369’s protective capabilities.

The 369 offers optimum motor protection where other relays cannot, by using the FlexCurve™ custom overload curve, orone of the fifteen standard curves.The 369 has one RS232 front panel port and three RS485 rear ports.

The Modbus RTU protocol is standard to all ports.Setpoints can be entered via the front keypad or by using the 369PC software and a computer. Status, actual values andtroubleshooting information are also available via the front panel display or via communications. A simulation mode andpickup indicator allow testing and verification of correct operation without requiring a relay test set.
