Dimensions: 4x18.6x26.1cm

Weight: 0.56kg

Voltage：25 VDC

Supply Frequency：20 or 65 Hz

Series：DC2000

Full Description:The DS200DTBAG1AAA GE Digital Contact Terminal Board whose input voltage range is 24 VDC to 125 VDC.

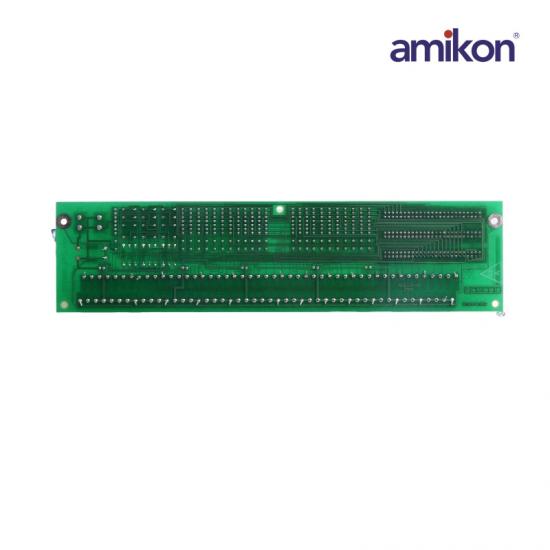

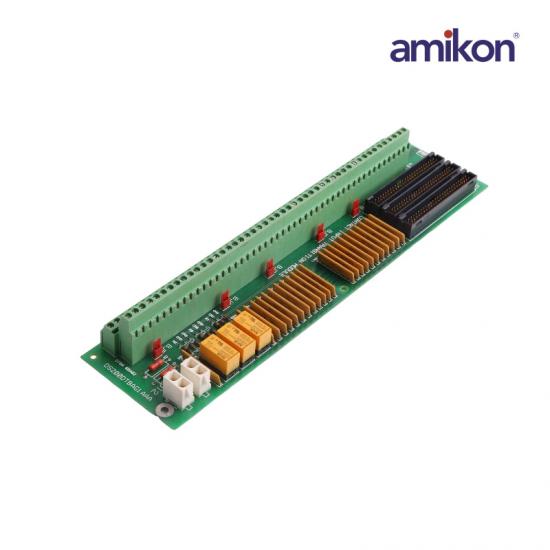

DS200DTBAG1AAA

The Digital Contact Terminal Board DS200DTBAG1AAA features two terminal blocks that connect a maximum of 95 wires. This unit also features five jumpers and two 2-pin connectors. The terminal blocks attach signal wires that send and receive information used by the drive. The potential is for a maximum of 190 wires attached to the GE Digital Contact Terminal Board DS200DTBAG1AAA, so you must be aware of the damage that can be caused to the other components and boards. There are four connections used when connecting the DS200DTBAG1AAA model to other models within the Mark V DS200 series.

The available connections are J12, JQR, JQS/T, and JY; all of these connections have their own specific function. For example, while the JQS/T connection is offered on the board, it is sparingly used. Several manually-moveable hardware jumpers are also adopted into the assembly of this DS200DTBAG1AAA Contact Input Termination Board, although they all feature the same general functionality.
