Dimensions: 28.8x72x3.5cm

Weight: 0.36kg

Voltage:12 VDC

Master Gateway：-20 to 45°C

Series:Mark V

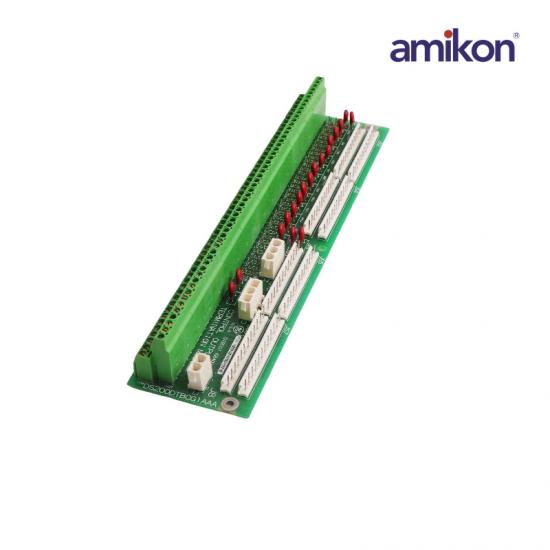

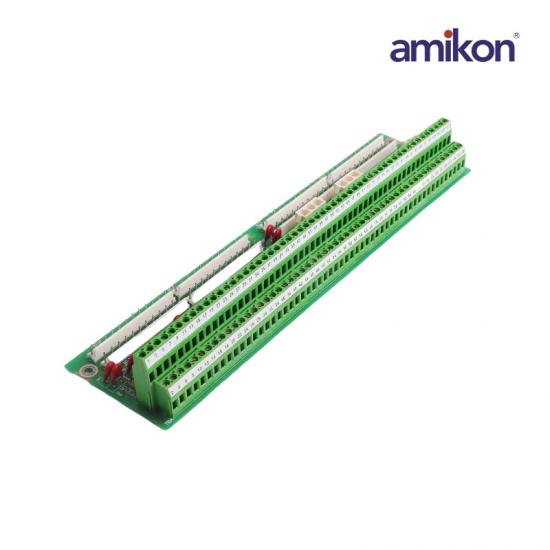

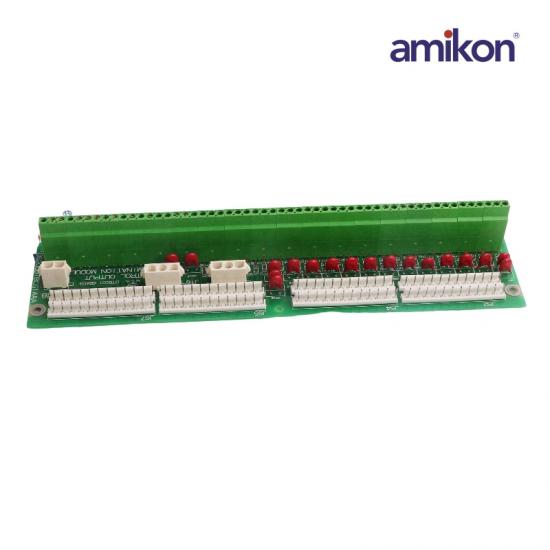

Full Description:This DS200DTBCG1AAA printed circuit board is referred to in original General Electric and Mark V Series instructional manual materials as both a DS200DTBCG1AAA Connector Relay Terminal Board and as a Contact Output Termination Module.

DS200DTBCG1AAA

Given this DS200DTBCG1AAA  product's dual functionalities, its internal assembly incorporates a unique and elevated amount of hardware components and component specifications. This DS200DTBCG1AAA The GE Connector Relay Terminal Board DS200DTBCGIAAA features 2 terminal blocks with terminals for 110 signal wires in each. It also contains 2 3-plug connectors and 1 2-plug connector and 10 jumpers. Some of the connectors made available to the assembly of this DS200DTBCG1AAA Contact Output Termination Module include:

The JS1-JS8 TCRA Board Relay Signals Connectors

The J8 TCPD Board Power Signal Connector

The J15 and J16 Connected 125 V dc Contact Outputs Power Connectors
