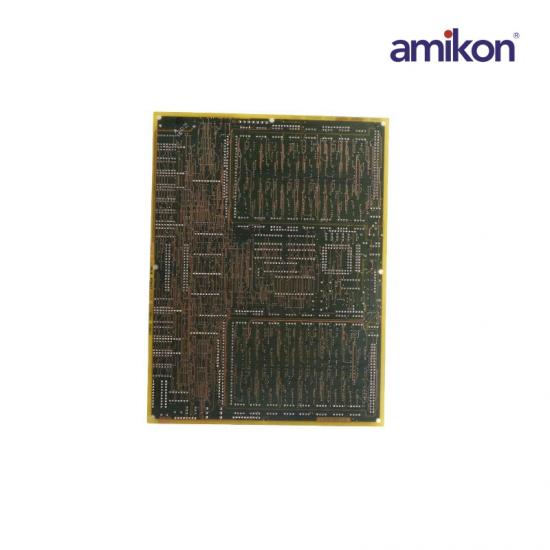

General Electric DS200TCDAH1BGD DIGITAL I/O BOARD

Dimensions:

28x21.3x1.8cm

Weight:

0.38kg

Master Gateway：

-20 to 25°C

Voltage：

12VDC

The Digital I/O board marked as DS200TCDAH1BGD is used within General Electric’s Mark V Speedtronic system.   Like many of the Speedtronic systems, the Mark V and its replacement parts are no longer supported by the OEM.

DS200TCDAH1BGD

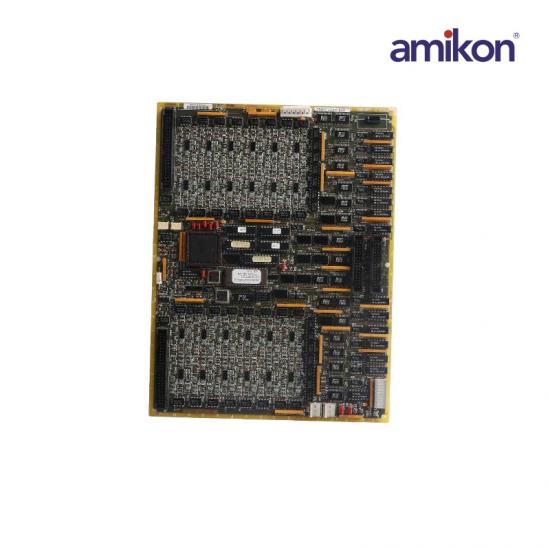

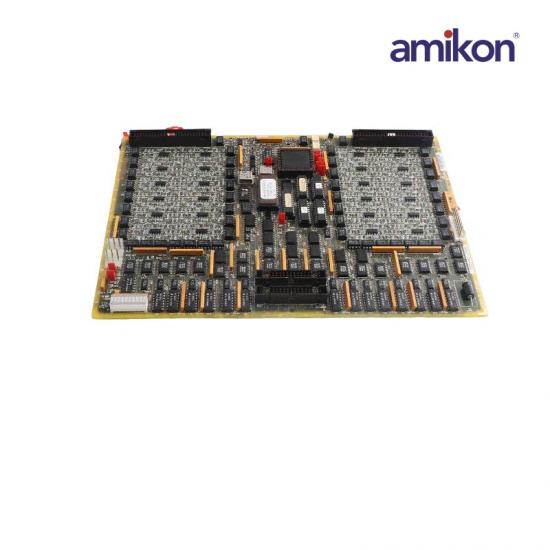

The DS200TCDAH1BGD Digital I/O Board features one microprocessor and multiple programmable read-only memory (PROM) modules. It also contains 1 block made up of 10 LED lights and a pair of 50-pin connectors along with 8 jumpers and 1 green LED that is visible from the side of the board. The PROM modules are removable from the board and they reside in a socket embedded on the board. When replacing the board or if you are in the process of replacing the PROM module for any reason, you can obtain a hand tool that is expressly designed for removing and installing the PROM modules.

It is important to remember that the PROM module is easily corrupted or destroyed by static buildup. Protect yourself and the equipment by always wearing a wrist strap when you work on the board or any other board or component in the drive. When the wrist strap is connected to a metal desk or chair, the static is attracted to the grounded object and leaves your body and the board.
