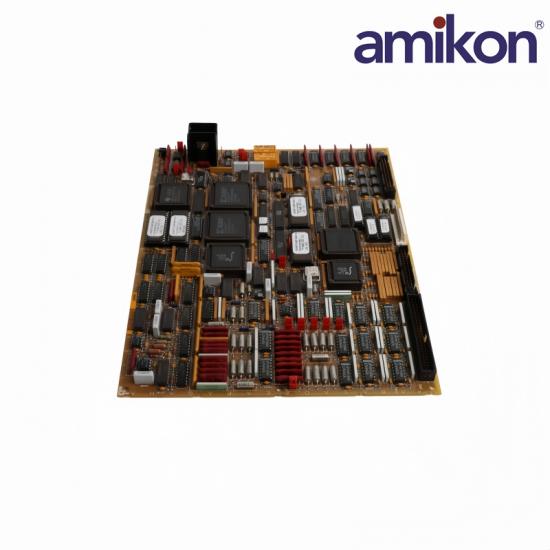

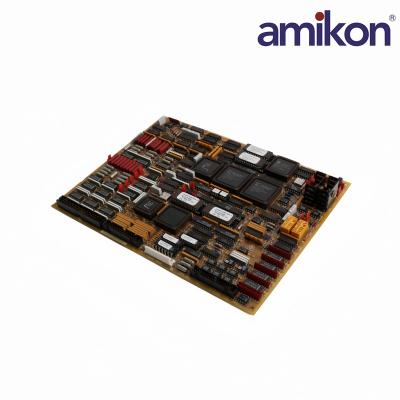

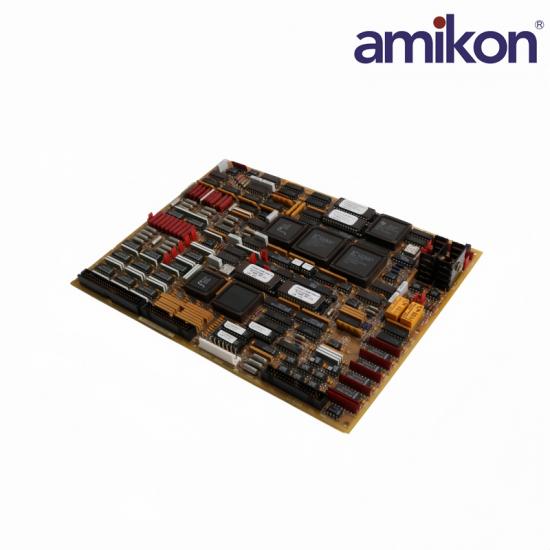

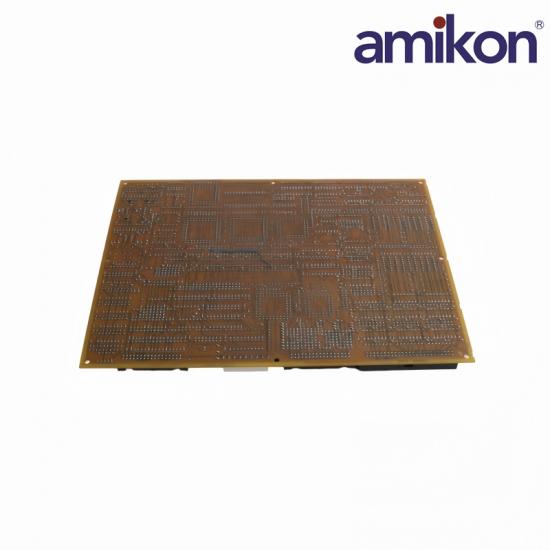

General Electric DS200TCQBG1BCA DS215TCQBG1BZZ01A Extended Analog I/O Board

DS200TCQBG1BCA DS215TCQBG1BZZ01A
DS200TCQBG1BCA DS215TCQBG1BZZ01A
DS200TCQBG1BCA DS215TCQBG1BZZ01A

General Electric DS200TCQBG1BCA DS215TCQBG1BZZ01A Extended Analog I/O Board

✉  INQUIRE NOW

GENERAL ELECTRIC · MARK V ANALOG I/O

DS200TCQBG1BCA DS215TCQBG1BZZ01A

Extended Analog I/O Board

MANUFACTURERGeneral Electric
MODELDS200TCQBG1BCA DS215TCQBG1BZZ01A
PART NUMBERDS200TCQBG1BCA DS215TCQBG1BZZ01A
PRODUCT TYPEExtended analog I/O board
SYSTEM FAMILYSpeedtronic Mark V
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    DS200TCQBG1BCA DS215TCQBG1BZZ01A
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    General Electric
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

General Electric · Mark V Analog I/O

DS200TCQBG1BCA DS215TCQBG1BZZ01A

Price and Availability Inquiry

DS200TCQBG1BCA with DS215TCQBG1BZZ01A identifies the TCQB extended analog I/O assembly for the R, S and T control cores of a GE Speedtronic Mark V turbine control system. Match both printed identifiers and the installed revision before replacement.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model DS200TCQBG1BCA DS215TCQBG1BZZ01A and required quantity in your inquiry.

General Electric · TCQB Extended Analog I/O

Technical Specifications

TCQB configuration, I/O capacity and board hardware data.

01Product IdentityExact assemblies
ManufacturerGeneral Electric
Primary AssemblyDS200TCQBG1BCA
Supplied VariantDS215TCQBG1BZZ01A
Functional AcronymTCQB
02Mark V ConfigurationGEH-6195F
Simplex1 card in <R>
TMR3 cards, <R> / <S> / <T>
Board RoleExtended analog I/O No. 1
Card Location3
03I/O CapacityGEH-6195F
Proximitor Inputs18
Accelerometer OptionPRX01–PRX03
LVDT / LVDR Inputs6 optional
Regulator mA Outputs2
04Board HardwareDS200TCQBG1 family
OK LED1
50-pin Connector1
Hardware Jumpers15
Programmable DevicesPLD + EPROM modules

DS200TCQBG1BCA DS215TCQBG1BZZ01A Product Support

Frequently Asked Questions

TCQB identification, Mark V placement, wiring control, revision matching and ordering guidance.

01

Which Mark V cores use the TCQB assembly?

The TCQB extended analog I/O board is associated with the R, S and T control cores; confirm the exact rack and slot in the installed Mark V drawing.

02

How should the two printed identifiers be handled?

Retain DS200TCQBG1BCA and DS215TCQBG1BZZ01A together in the purchase record because both identify the supplied assembly configuration.

03

Which revision characters must match?

Compare the complete G1BCA and G1BZZ01A suffixes with the removed board labels and the plant bill of material.

04

Where should cable positions be recorded?

Photograph and label every ribbon cable and connector before removal, then reconcile the connections with the Mark V wiring drawing.

05

How can a replacement be checked before installation?

Verify board family TCQB, both complete identifiers, connector population, visible revision markings and rack compatibility.

06

When should configuration records be backed up?

Capture the current control constants, I/O mapping and diagnostic state before the existing board is disturbed.

07

Which commissioning checks follow replacement?

Run the approved Mark V diagnostics and verify every affected analog channel, alarm and trip path under the site procedure.
