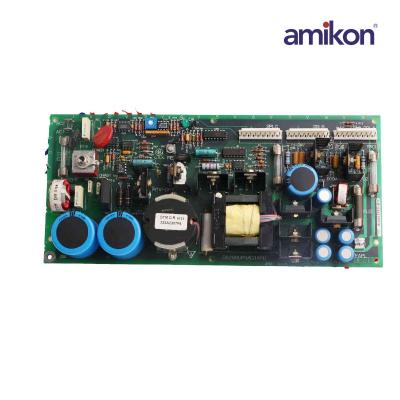

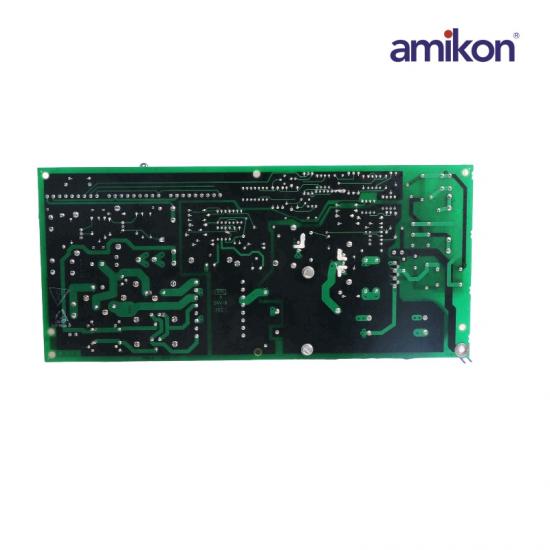

General Electric DS200UPSAG1A POWER SUPPLY INTERFACE BOARD

Dimensions:

28x21.2x3.5cm

Weight:

0.46kg

Master Gateway：

-20 to 25°C

Voltage：

132VDC

Bussman type MDA-4, 4A, 250 V; SSC rating 200 A or equivalent
Bussman type AGC-3, rated 3A, 250 V; SSC rating 100 A or equivalent; FU2, FU4 FU3 - ABC-12
Bussman type, rated 12A, 250 V; SSC rating 750 A or equivalent

DS200UPSAG1A

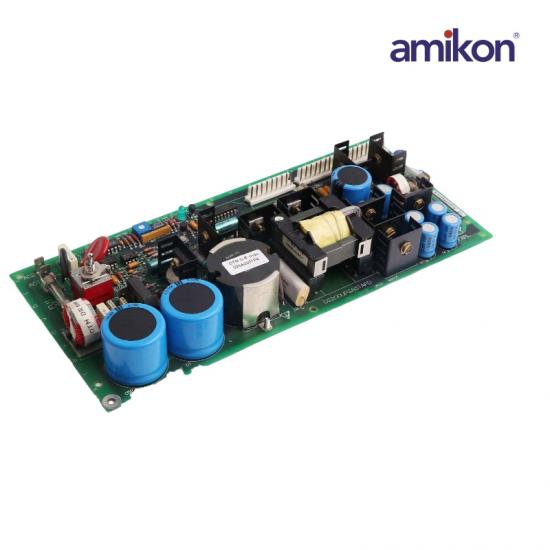

The GE EX2000 Power Supply Board DS200UPSAG1A features one reset button, 3 fuses, and one LED light. The GE EX2000 Power Supply Board DS200UPSAG1A also is populated with 3 9-pin connectors, several capacitors, and test points. The GE EX2000 Power Supply Board DS200UPSAG1A also is populated with 3 heat sinks. The heat sinks draw heat from heat producing components on the board.

The heat sinks protrude from the board and require space for the heat to dissipate from them. For that reason, the board must have clearance all around it and cannot be sandwiched between other boards. That is, the board must have free flowing air around it. Also, when you remove the board from the drive, care must be taken to prevent the heat sinks from hitting other components in the drive. Also, the heat sinks may possibly end up broken off the board if they strike a component or structure in the drive.
