Dimensions: 12cmx21cmx2.5cm

Weight: 0.36kg

Supply Frequency:20 or 55 Hz

Series:DS200

Voltage:32 VDC

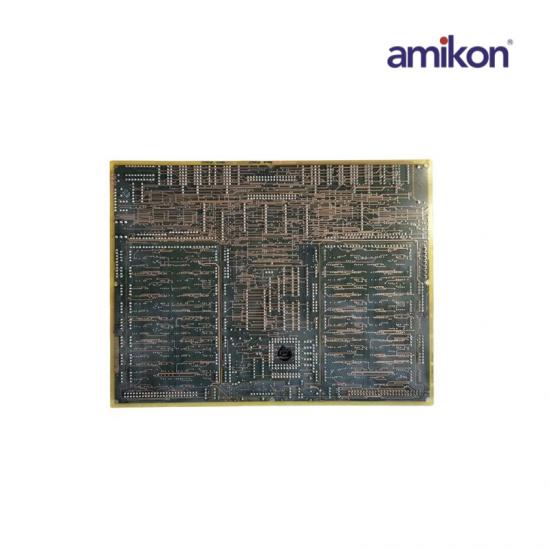

Full Description:The General Electric DS215TCDAG1BZZ01A is a drive control card developed for the Mark V series of boards. Contained on this card is the primary control circuitry as well as the system software.The MCP performs motor control functions as well as system I/O functions. If the processing power of the MCP is not enough to perform control algorithms, the CMP will take over.

DS215TCDAG1BZZ01A DS200TCDAG1BFD

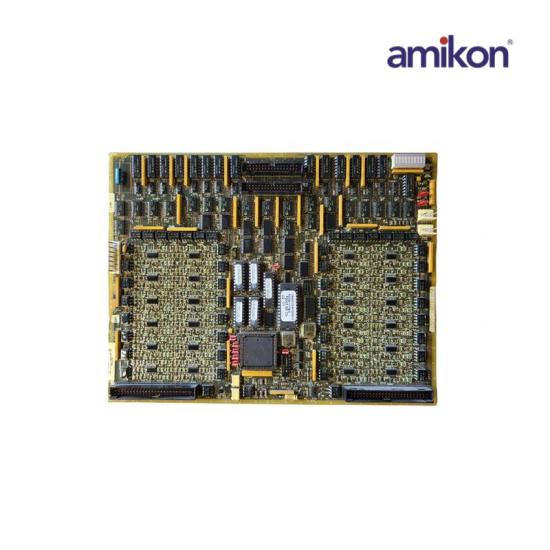

DS215TCQAG1BZZ01A is an Analog I/O Board manufactured and designed by General Electric as part of the Mark V LM Series used in turbine control systems. The Analog IO Board (TCQA) scales and conditions a large number of the analog signals that terminal boards mounted on the I/O cores R1, R2, and R3 read in. Included in this group of signals are the LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals. On the STCA board, some of the signals are written via the 3PL connector. Through the JE connector, the TCQC board receives and transmits generator and line signals.
