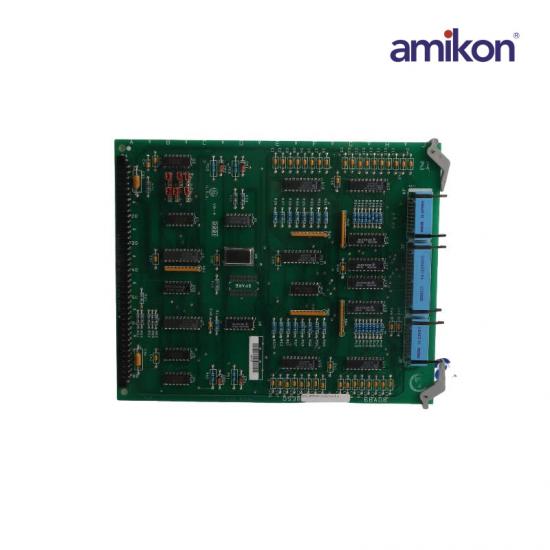

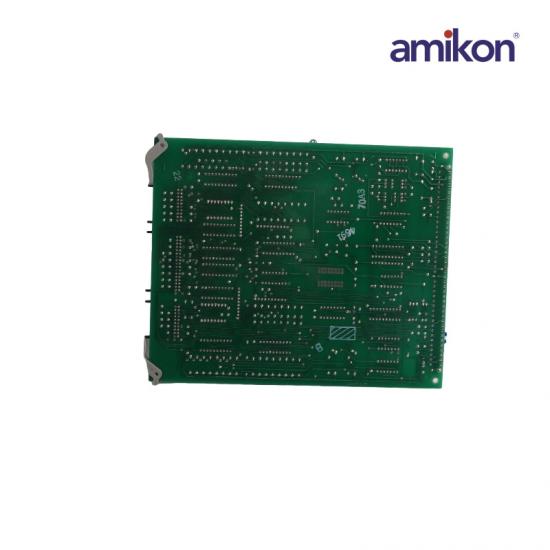

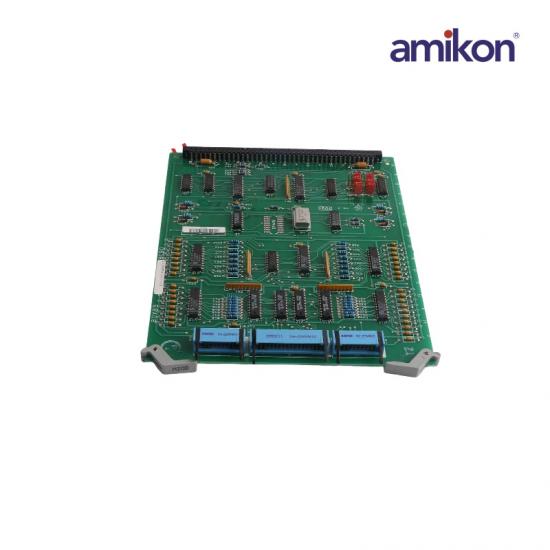

General Electric DS3800HIOD1H1G  Digital I/O Board

Dimensions:

19.2x23.3x2cm

Weight:

0.24kg

Master Gateway：

-20 to 35°C

Voltage：

12VDC

The GE Digital I/O Board DS3800HIOD1H1G is designed for quick installation in the drive. The board features a modular connector on 1 end and retention levers on the other end. The GE Digital I/O Board DS3800HIOD1H1G also is populated with 2 10-pin connectors and 1 40-pin connector located between the retention levers making them accessible from the front of the board. It also is populated with 6 jumpers.

DS3800HIOD1H1G

DS3800HIOD1H1G is a Digital I/O Board manufactured by General Electric and it's a part of the Speedtronic Mark IV Series used for gas turbine control systems. The DS3800HIOD1H1G Digital I/O Board is designed for easy installation in the drive. On one end, the board has a modular connector, while on the other, it has retention levels. Two 10-pin connectors and one 40-pin connector are positioned between the retention levers on the GE Digital I/O Board, making them accessible from the front of the board. There are also six jumpers on it. It is sensitive to static electricity build-up.
