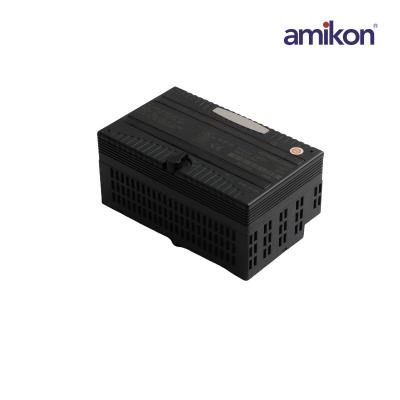

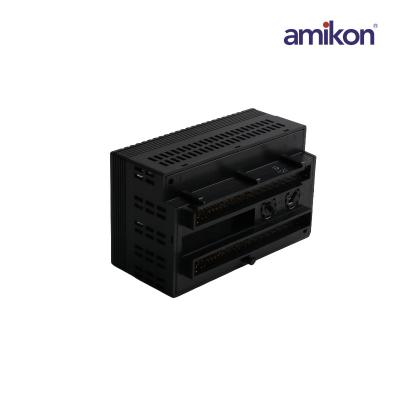

General Electric IC200ALG260 Analog Input Module

Dimensions:

11x5.5x6.5cm

Weight:

0.14kg

Master Gateway：

-20 to 35°C

Voltage：

10.2-30VDC

The IC200ALG260 is an 8 channel, 12 Bit, Voltage/Current Analog Input Module from the GE Fanuc Versamax series with eight voltage and current inputs. The analog input module has eight isolated inputs as part of an intelligent module that can accept input signals from up to eight separate analog devices

IC200ALG260

The IC200ALG260 input module is a GE Fanuc analog input module from the GE Versamax PLC series that can act as an interface device for either 8 current inputs or 8 voltage inputs. All 8 of its inputs are single-ended and they are arranged in a single group.

The IC200ALG260 is an analog input module from the Versamax I/O platform. This module is an Eight (8) channel input module that accepts unipolar and bipolar voltage signals specifically, 0 to 10V and +/-10VDC respectively, and current input signals such as 4-20 mA. This module converts the accepted signal to digital data with a resolution of 12 bits.
