Dimensions: 2cmx18.6cmx26.2cm

Weight:0.35KG

Product Package: Original Package

Condition: 100% New Original

Product Origin: USA

Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.

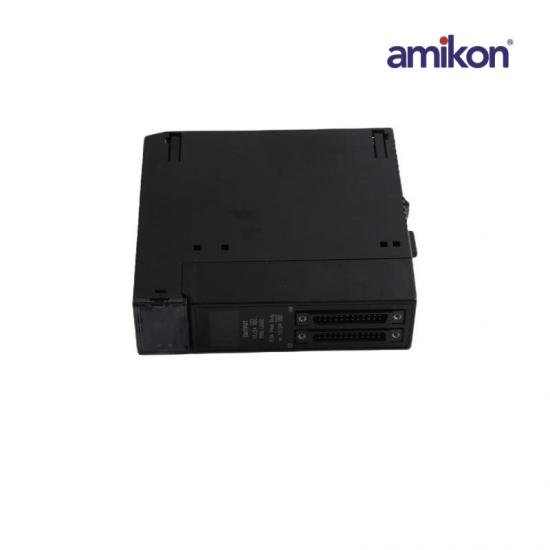

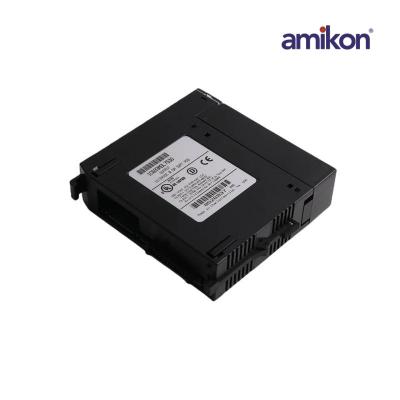

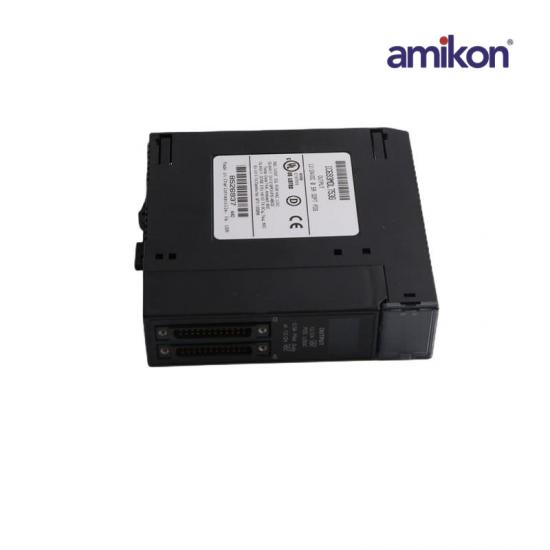

IC693MDL753

The outputs on IC693MDL753 module are capable of switching loads from +12 through +24 VDC (+20%, –15%). They can also source current to a maximum value of 0.5 amps per point. In the group commons, there are user I/O connectors. Each connector has two pins, which can handle up to 3A current. When the user is connecting the group common, it is advised that connections be made to both pins.

The GE Fanuc IC693MDL753 is 12/24 volt DC, 0.5A Positive Output module. Designed for the Series 90-30 Programmable Controller, this output module is equipped with 32 discrete outputs. These outputs have been set up in four separate isolated groups of eight. Each group has its own dedicated common. As they are sourcing type outputs, they switch the loads on the positive side of the power supply to supply current to the load.
