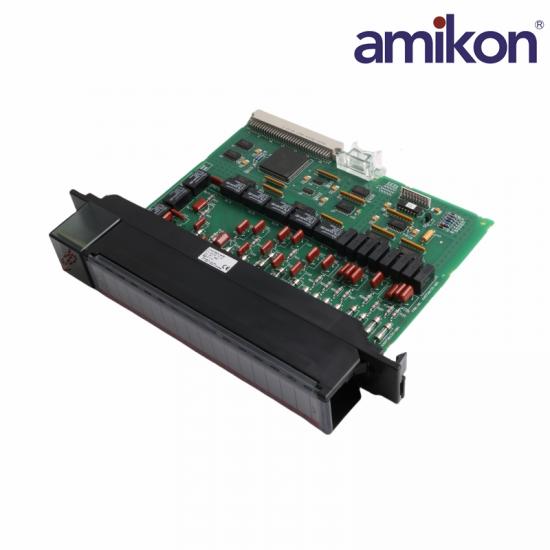

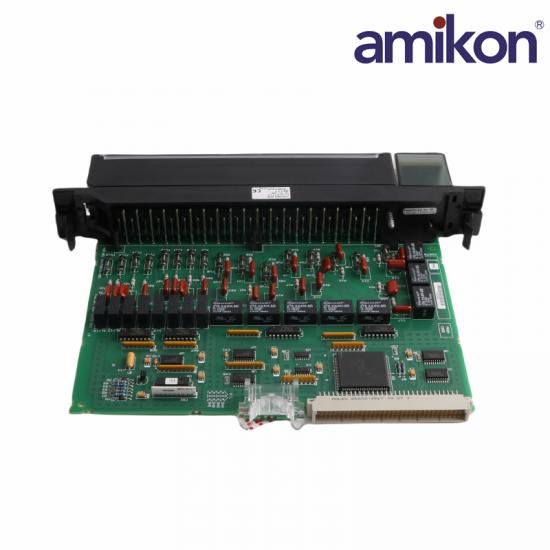

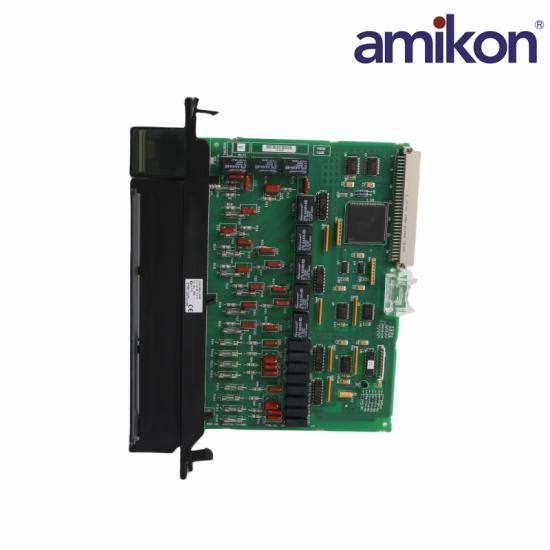

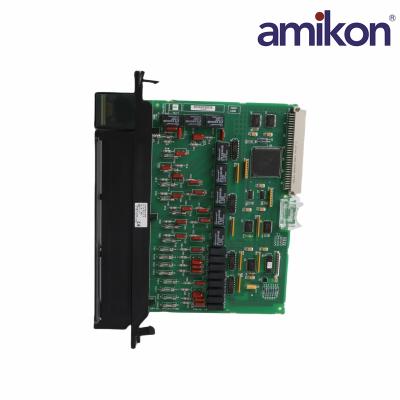

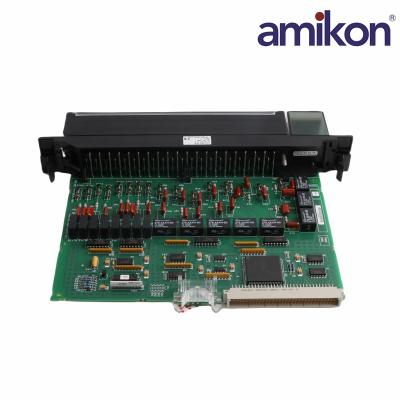

General Electric IC697MDL940 16-Point Relay Output Module

IC697MDL940
IC697MDL940
IC697MDL940

General Electric IC697MDL940 16-Point Relay Output Module

✉  INQUIRE NOW

GENERAL ELECTRIC · Series 90-70

IC697MDL940

16-Point Relay Output Module

MANUFACTURERGeneral Electric
MODELIC697MDL940
PART NUMBERIC697MDL940
PRODUCT TYPE16-Point Relay Output Module
SYSTEM FAMILYSeries 90-70
ORDER SUPPORTExact Model Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    IC697MDL940
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    General Electric
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

General Electric Series 90-70

IC697MDL940

Price and Availability Inquiry

The GE Fanuc IC697MDL940 is a 16-point relay output module for Series 90-70 systems, providing eight isolated Form C outputs and eight Form A outputs.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model IC697MDL940 and required quantity in your inquiry.

GENERAL ELECTRIC IC697MDL940

Technical Specifications

Published identification, configuration, interface and operating data for this 16-Point Relay Output Module.

01Product IdentityOfficial module identification
ManufacturerGE Fanuc
Catalog NumberIC697MDL940
Product Designation16-Point Relay Output Module
Product FamilySeries 90-70
02Output ConfigurationPublished relay arrangement
Outputs per Module16
Form C Outputs8; individually isolated
Form A Outputs8; 2 groups of 4
Relay TypeFixed coil, moving armature
03Electrical RatingsPublished load data
Nominal Voltage120/240 VAC; 5/24/125 VDC
Maximum Load Current16 A/module; 4 A/Form A group
Maximum Power480 VA AC; 60 W DC
5 V Bus Current750 mA
04Switching & ProtectionPublished operating limits
Per-Point Current2 A AC or 5–30 VDC
High-Voltage DC Current0.2 A at 31–125 VDC
Response Time10 ms max. ON / OFF
Isolation / Protection1500 V; 3 A fuse + RC snubber

GENERAL ELECTRIC IC697MDL940 PRODUCT SUPPORT

Frequently Asked Questions

Identification, configuration, application and ordering guidance for IC697MDL940.

01

How is IC697MDL940 identified?

It is the GE Fanuc Series 90-70 16-point relay output module cataloged as IC697MDL940.

02

Which relay configurations are provided?

The module provides eight individually isolated Form C outputs and eight Form A outputs arranged as two groups of four.

03

Which load voltages and current ratings apply?

Published ratings cover 120/240 VAC and 5/24/125 VDC, with up to 2 A per point in the applicable AC and low-voltage DC ranges.

04

How much total load current can the module switch?

The published resistive limits are 16 A per module and 4 A for each Form A group.

05

Which response and switching limits apply?

Maximum ON and OFF response time is 10 ms, and inductive-load switching is rated at 20 cycles per minute.

06

How are the outputs isolated and protected?

Isolation is 1500 V from output to backplane and 500 V between Form C circuits or Form A groups; each output uses a 3 A fuse and RC snubber.

07

Which details should be checked before ordering?

Confirm catalog number IC697MDL940, output contact arrangement, field voltage, load current, terminal-board condition and Series 90-70 slot configuration.
