Dimensions:6.5x21.8x29.3cm	Input Voltage Range: 90 to 264 VAC or 100 to 150 VDC
Weight:1.64kg	Input Power: 135 watts at full load
Series：Series 90-70	Output Power: 100 watts
Nominal Rated Voltage: 120/240 VAC or 125 VDC	DC Output: + 5VDC, +12 VDC and -12 VDC

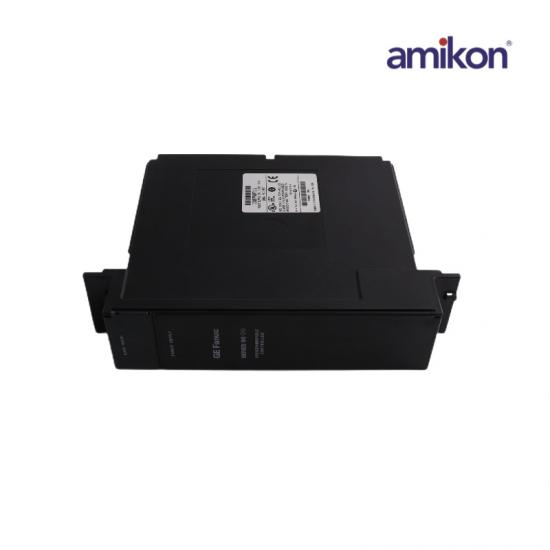

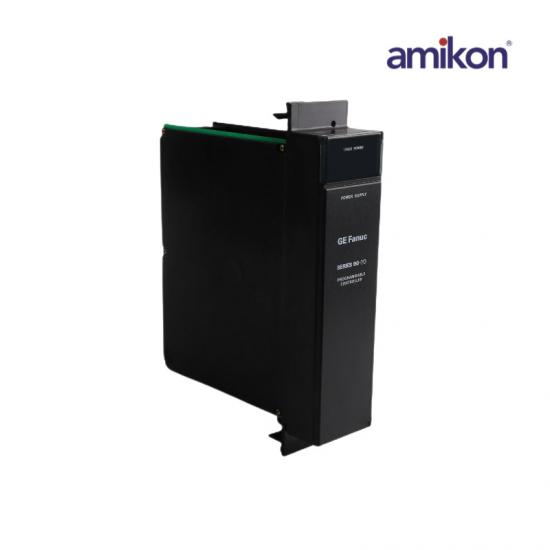

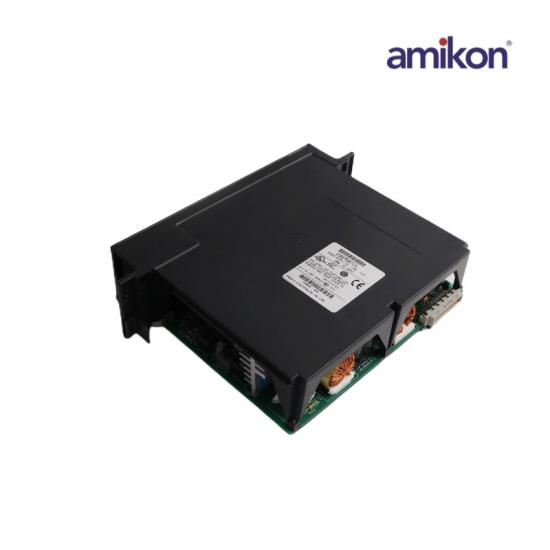

IC697PWR711 describe The IC697PWR711 is a GE Fanuc manufactured 100 Watt Power Supply Module for the Series 90-70. Features include operation from 120 VAC, 240 VAC, or 125 VDC, and there are three output voltages (100 watts total) as follows: +5 VDC output up to 20 amps; +12 VDC output up to 2 amps; -12 VDC output up to 1 amp. Other highlights include slide-in rack mount construction, electronic short circuit overcurrent protection, two rack operation from a single power supply, power factor correction for AC operation, and a jumper for overvoltage protection devices. This power supply module can operate from 120 VAC or 240 VAC nominal inputs. A nominal 125 VDC source is also an option. The specified range of operation is from 90 VAC to 264 VAC and from 100 VDC to 150 VDC. For uninterrupted operation (more than one hour) at low line voltages and high temps, some power derating must be applied.

+86 18965423501 sales16@amikon.cn AMKPLC

Question: What is an IC697PWR711?
Answer: The IC697PWR711 is an 120/240 VAC or 125 VDC, 100W Power Supply module from the GE Fanuc 90-70 Series.

Question: Into where does this unit plug?
Answer: IC697PWR711 is a rack-mounted unit that plugs directly into a 48-pin backplane-mounted connector in the leftmost slot in therack.

Question: Once there, what does it provide?
Answer: IC697PWR711 provides +5 volt, +12 volt, and -12 volt power (as well as logic level sequencing signals to the backplane).

Question: What are some of the features that IC697PWR711 provides?
Answer
Operation from 120/240 VAC or 125 VDC

▲3 output voltages (100 watts total): +5 VDC output up to 20 amps, +12 VDC output up to 2 amps, and -12 VDC output up to 1 amp

▲Slide-in rack mount construction

▲Electronic short circuit overcurrent protection

▲2 rack operation from a single power supply

▲Power factor corrected on AC inputs

▲Jumper for overvoltage protection devices

Question: Can this unit only provide power to a single rack application?
Answer: No. This unit can, yes, provide power to a single rack application, but it can also be used to provide power to a second rack (as long as the total load is within the supply rating).

Question: Is protection provided for overcurrent and overvoltage fault conditions?
Answer: Yes, it is.

Question: What should happen when you plug in this unit and hit the power button?
Answer: You should get a green LED light on, as well as the LED on the CPU should be lit up (letting you know it's providing power to the CPU).
