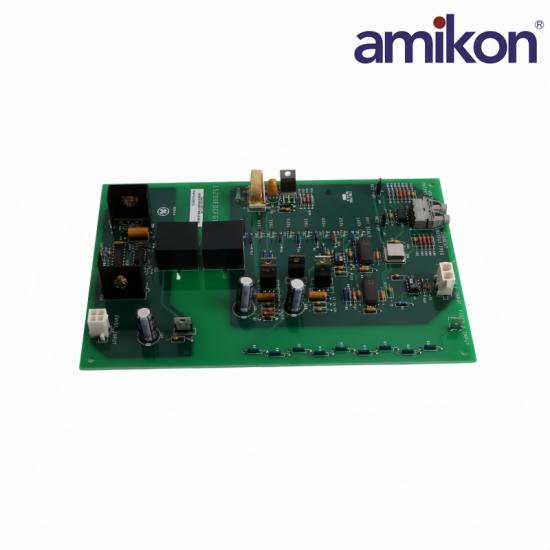

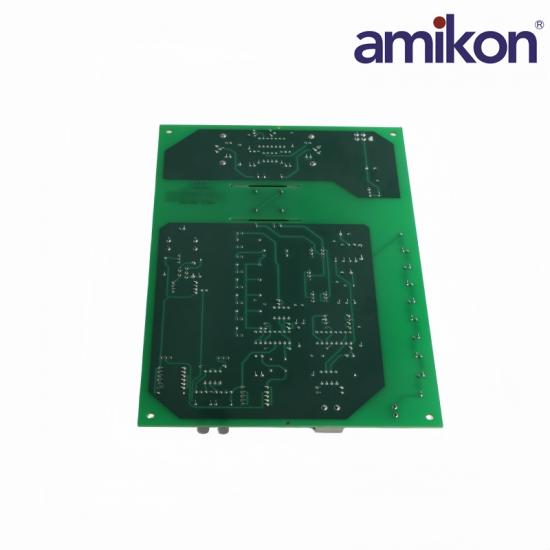

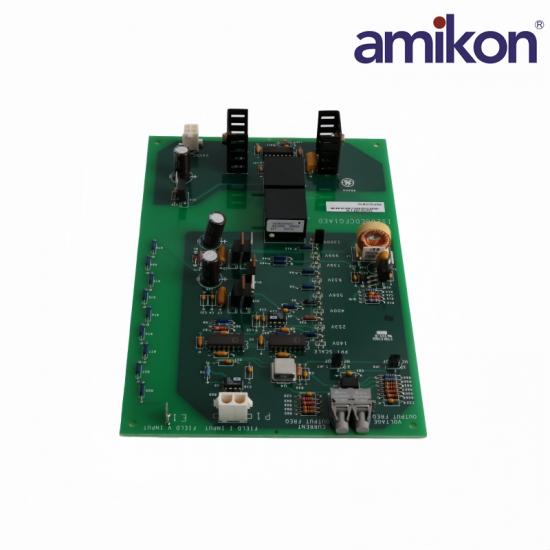

General Electric IS200EDCFG1ADC Exciter DC Feedback Board

IS200EDCFG1ADC
IS200EDCFG1ADC
IS200EDCFG1ADC

General Electric IS200EDCFG1ADC Exciter DC Feedback Board

✉  INQUIRE NOW

GENERAL ELECTRIC · EX2100

IS200EDCFG1ADC

Exciter DC Feedback Board

MANUFACTURERGeneral Electric
MODELIS200EDCFG1ADC
PART NUMBERIS200EDCFG1ADC
PRODUCT TYPEExciter DC Feedback Board
SYSTEM FAMILYEX2100 Excitation Control
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    IS200EDCFG1ADC
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    General Electric
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

GENERAL ELECTRIC · EX2100

IS200EDCFG1ADC

Price and Availability Inquiry

The General Electric IS200EDCFG1ADC is a Exciter DC Feedback Board for EX2100 Excitation Control applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the complete model and required quantity to Lisa Lin.

Your AMIKON Contact

LLLisa LinSales Specialist
WhatsApp+86 18965423501
Request a Quote on WhatsAppSend Email Inquiry
For faster service, please include the model IS200EDCFG1ADC and required quantity in your inquiry.

General Electric IS200EDCFG1ADC

Technical Specifications

Published identification, configuration and technical data for IS200EDCFG1ADC.

01Product Identity
ManufacturerGeneral Electric
Part NumberIS200EDCFG1ADC
Functional AcronymEDCF
System FamilyEX2100
02Electrical Data
External Supply±24 V DC
Internal Rails+15 V / −15 V / +5 V DC
Shunt Input500 mV DC max.
Amplifier Output−5 to +5 V DC
03Fiber-Optic Data
Signal Channels2
Plastic Fiber10 m max.
Hard-Clad Silica90 m max.
Minimum Bend Radius38.1 mm (1.5 in)
04Connector Data
Current InputP1; 4-pin
Voltage InputE1 stab terminal
Current FiberCF OF
Voltage FiberVF OF

General Electric IS200EDCFG1ADC Product Support

Frequently Asked Questions

Model-specific compatibility, installation, configuration and ordering guidance.

01

What does the EDCF board measure?

It measures field current at the DC shunt and field voltage across the excitation bridge.

02

How is feedback transferred to the control cabinet?

Separate current and voltage signals are sent to the EISB board over fiber-optic links.

03

Which connector supplies the board?

Connector J16 supplies 24 V DC to the onboard converter.

04

What is the maximum field-current shunt signal?

The published P1 field-current input is up to 500 mV.

05

Which fiber lengths are supported?

Plastic fiber is specified up to 10 m and hard-clad silica fiber up to 90 m.

06

What does the PSOK indicator mean?

The green PSOK LED indicates that the onboard power supply is operating.

07

How should the trailing ADC revision be handled?

Match the complete IS200EDCFG1ADC nameplate; the base hardware form is EDCF Group 1 Form A and revision interchangeability must be verified.
