Dimensions: 4cmx18cmx17.2cm

Weight:1.26kg

Product Package: Original Package

Condition: 100% New Original

Product Origin: USA

Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.

VTCC H1C IS200VTCCH1CBD

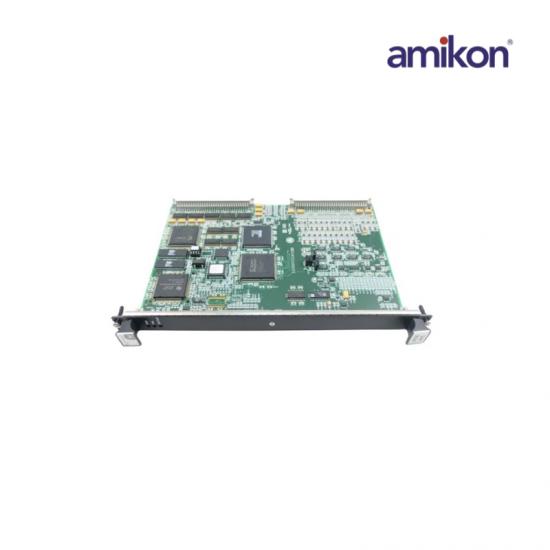

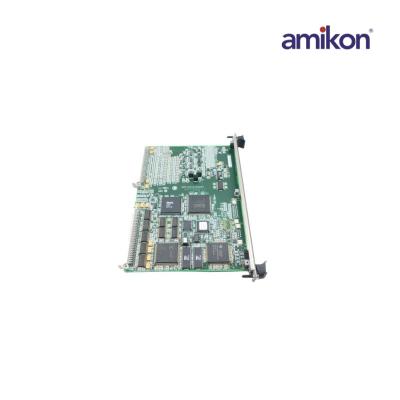

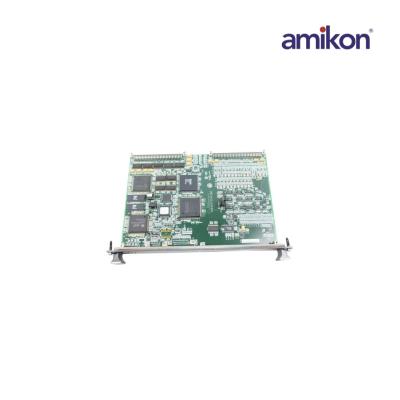

The IS200VTCCH1CBD is a GE board component made for the Mark VI system.  The IS200VTCCH1CBD has a front faceplate with three LEDs mounted into its surface.  These LEDs are labeled run/fail/status and are green, red, and orange in color.  The faceplate attaches to the PCB using screw connections.

The IS200VTCCH1CBD functions as a Thermocouple Input.  It accepts up to twenty-four thermocouple inputs using terminal boards (TBTC or DTTC.)  This board supports E, J, K, S, and T types of thermocouples and mV inputs with a span of -8mV to +45mV.

The IS200VTCCH1CBD has six board connectors (P1 through P6.) This includes two backplanes (P1 and P2,) and four connectors created by conductive traces and dots.   The board is component dense and includes hundreds of resistors and capacitors.  The board also has inductor coils/beads (L1 through L19,) TP test points, diodes, and integrated circuits.  Circuits include Xilinx Spartan XCS30 field-programmable gate arrays, Dual-port SRAM, CMOS Static RAM, and digital signal processors.   The board is marked with codes like 94V0, E99006, and Type 6.   More information is available through manuals, data sheets, or the MKVI Turbine Control System Guide (GEH-6421.)
