Brand/Manufature:
HoneywellProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooData Format: 16-bit binary value (data: 14 bits)
Maximum Resolution:
1 ~ 5V: 0.250 mV
0 ~ 5V: 0.3125 mV
0 ~ 10V: 0.625 mV
-10 ~ 10V: 1.250 mV
Accuracy:
±0.2% or less (when ambient temperature is 25 (±5) °C)
±0.3% or less (when ambient temperature is 0 ~ 55 °C)
Maximum Conversion Speed: 250 μs/channel
Absolute Maximum Input: ±15 V
Analog Input Channels: 8 channels/1 module
Terminal Connected: 18-point terminal
I/O Addresses Assigned: Fixed type: 64 points, Variable type: 16 points
Current Consumption: 420 mA (DC 5V)

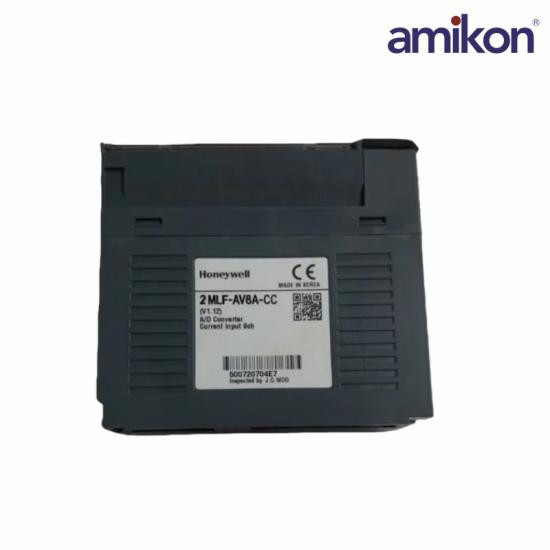

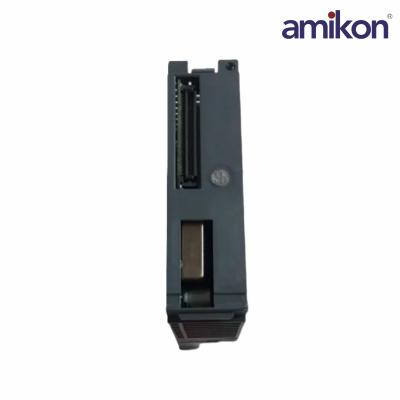

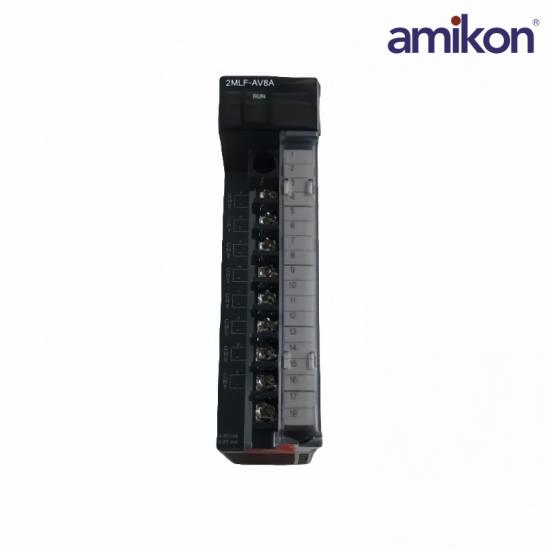

The 2MLF-AV8A-CC module offers eight independent voltage input channels, each capable of handling various voltage ranges. It features high-speed analog-to-digital conversion, ensuring accurate and timely data acquisition. The module's design includes photo-coupler isolation between input terminals and PLC power, enhancing signal integrity and system safety.
+86-18965423501
sales7@amikon.cn
AMKPLC
Amikon provide 12 months warranty for all the goods from us.
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation.
Shipped in 3 days after payment
Original packing with cartons.
100% make sure the best quality!
