Brand/Manufature:
HoneywellProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

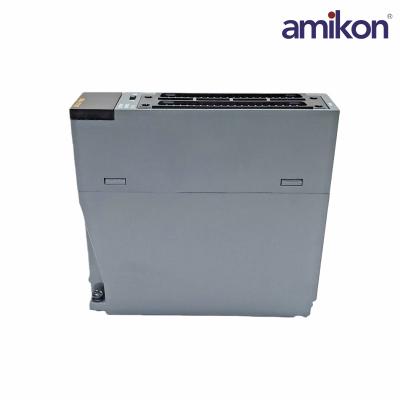

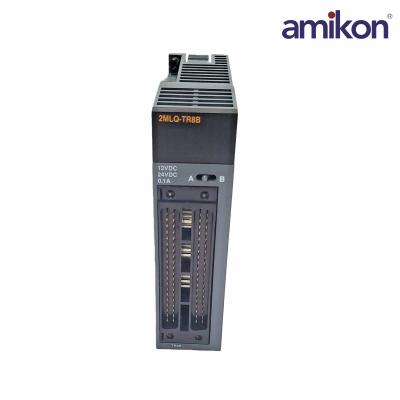

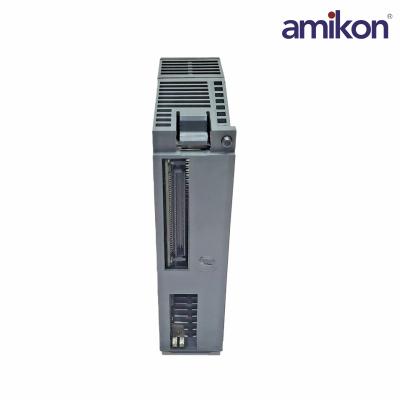

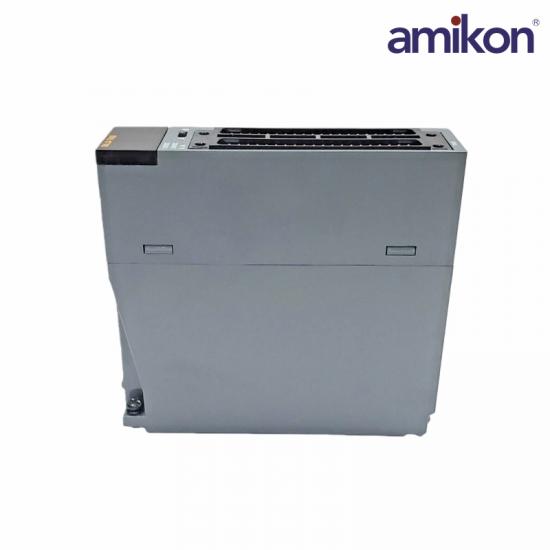

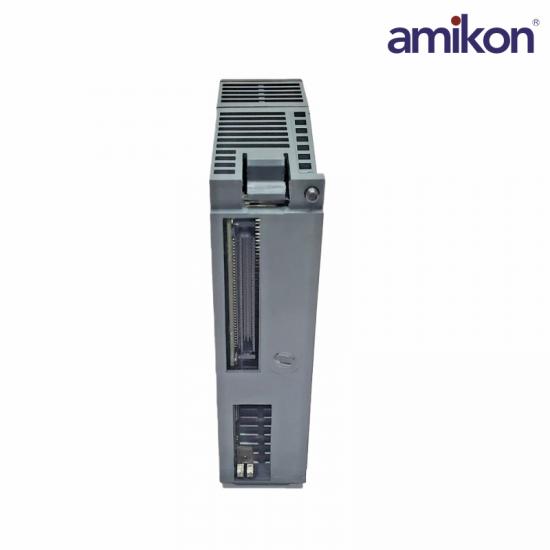

CooModel: 2MLQ-TR8B-CC
Manufacturer: Honeywell
Module Type: Digital Output Module
Rated Load Voltage: DC 12 V / DC 24 V
Load Voltage Range: DC 10.2 V to 26.4 V
Output Points: 64 points
Maximum Load Current: 0.1 A per point, 2 A per COM (common)
Off Leakage Current: ≤ 0.1 mA
Maximum Inrush Current: ≤ 4 A / 10 ms
Maximum Voltage Drop (On): ≤ DC 0.3 V
Common Method / Points per COM: 32 points / 1 COM
The Honeywell 2MLQ-TR8B-CC is a high-density, high-performance transistor (solid-state) output module designed for the ML200 PLC system. It supports 64 output points in a compact module, providing reliable sourcing-type digital outputs at 12 / 24 V DC. With fast switching times, low on-voltage drop, and minimal leakage current, it is ideal for demanding industrial control applications such as process and factory systems. The module features photo-coupler isolation for enhanced noise immunity and supports field wiring via dual 40-pin connectors. Built for robust operation and long service life in industrial environments.
