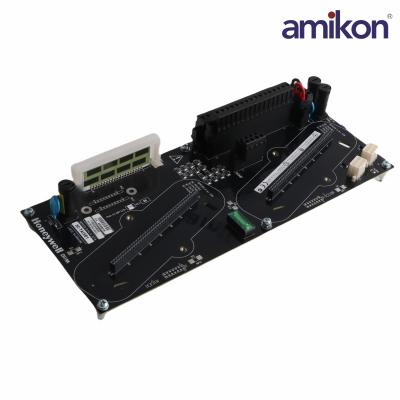

Part Number: 8C-TAIXB1

Manufacturer: Honeywell

Type: Input/output module

Input Type: Current (2-wire or self-powered transmitters)

Input Channels: 16 Channels (All 16 Single Ended)

A/D Converter Resolution: 16 bits

Voltage Rating: 24 VDC

Module Current Rating: 110 mA

Input Range: 4–20 mA (through 250 Ω resistor)

Module Removal and Insertion: Supported under power (hot-swappable)

Normal Mode Rejection Ratio (at 60 Hz): 19 dB

Normal Mode Filter Response: Single-pole RC, -3 dB at 6.5 Hz

Crosstalk (dc to 60 Hz, channel-to-channel): -60 dB

Maximum Input Voltage: ±30 V (any input referenced to common, no damage)

Input Scan Rate: 50 ms

Hardware Accuracy (@ CMV = 0 V):

±0.075% of full scale (at 23.5° ± 2°C)

±0.15% of full scale (0 to 60°C)

The Honeywell 8C-TAIXB1 is a versatile and robust input/output module designed as part of Honeywell’s Series 8 I/O platform, widely used in industrial and process control systems. This module is engineered to provide reliable and precise interfacing for both analog inputs and outputs, enabling seamless communication between field devices and the central control system.

Featuring multiple input and output channels, the 8C-TAIXB1 supports a broad range of signal types, including current, voltage, and temperature signals, making it highly adaptable to diverse industrial applications. Its high-resolution analog-to-digital and digital-to-analog converters ensure accurate signal processing, critical for maintaining process integrity and achieving optimal control performance.

Built to withstand harsh industrial environments, the module offers excellent electrical isolation and noise immunity, ensuring stable operation even in electrically noisy or high-temperature conditions. It supports hot-swappable functionality, allowing maintenance and module replacement without system downtime, which is essential for continuous process operations.

The 8C-TAIXB1 integrates seamlessly with Honeywell’s Experion Process Knowledge System (PKS) and other Series 8 controllers, providing scalable and flexible solutions for complex distributed control architectures. Its advanced diagnostic features enable proactive maintenance by detecting faults such as open circuits, wiring issues, and channel failures, thereby minimizing unexpected outages and enhancing system reliability.
