Part Number: 8C-TAOXA1

Manufacturer: Honeywell

Type:Analog Output Module

Number of Output Channels: 16

Output Signal: 4–20 mA current loop

Output Resolution: ±0.05% of Full Scale

Accuracy: ±0.2% FS (at 25 °C)

Output Current Range: 2.9 mA to 21.1 mA (directly settable)

Load Resistance: 50 to 800 Ω

Voltage Rating: 24 VDC nominal supply voltage

Maximum Open Circuit Voltage: 22 V

Module Current Rating: Approximately 190 mA

Operating Temperature Range: 0 °C to 60 °C

Storage Temperature Range: -40 °C to 85 °C

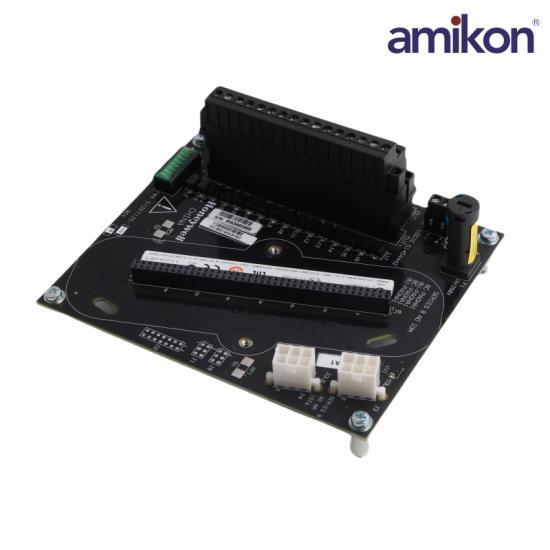

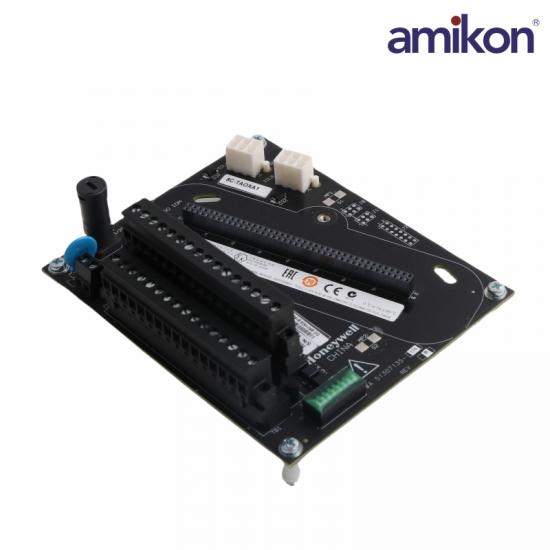

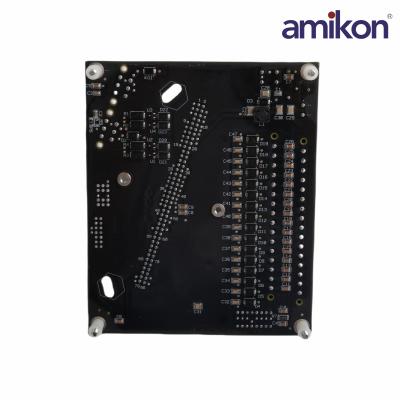

The Honeywell 8C-TAOXA1 Analog Output Module is a critical component within Honeywell’s Series 8 I/O platform, designed to deliver precise and reliable analog signals for complex industrial and process control systems. This module features 16 individual output channels capable of generating stable 4–20 mA current signals, which are widely used to control actuators, valves, and other field devices that require accurate analog input for optimal operation.

Engineered for high accuracy, the 8C-TAOXA1 provides exceptional linearity and low drift, ensuring that signal integrity is maintained even under challenging environmental conditions. It supports direct current output ranges from 2.9 mA to 21.1 mA with a resolution of ±0.05% of full scale, allowing for fine control and responsiveness in demanding applications. The module’s design includes robust diagnostics such as open wire detection and channel-level fault reporting, enabling quick identification and resolution of issues to minimize downtime and enhance system reliability.
