Dimensions: 13cmx8.6cmx6.5cm

Weight: 0.4kg

Input Range: 105 mA

Series: Mark VI

Voltage Range: 250 Volts

Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.

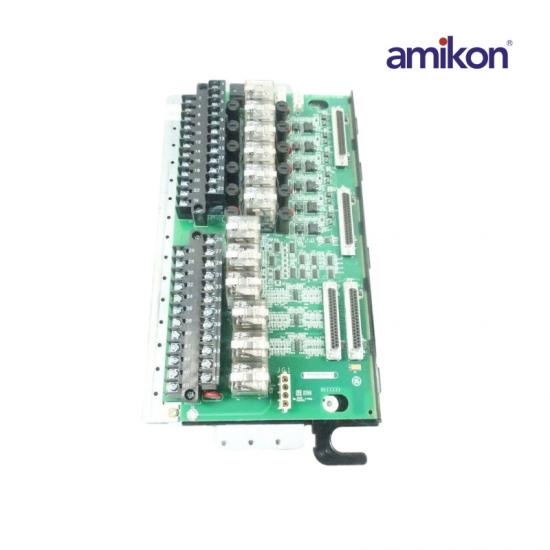

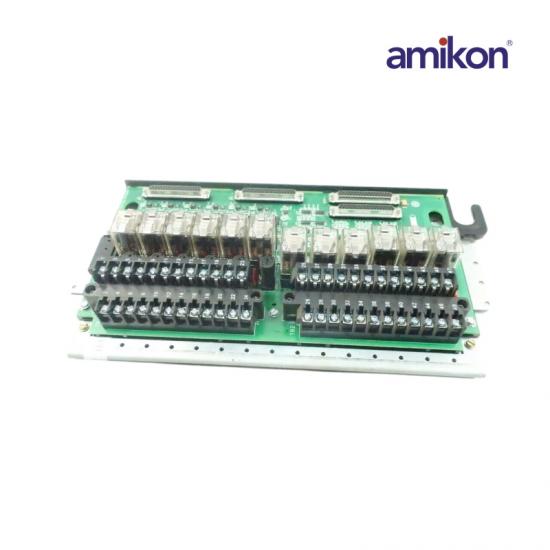

lS200TRLYH1BHH

The lS200TRLYH1BHH developed by General Electric is a component created for their Mark VI system. The MKVISpeedtronic systems were considered to be some of the most reliable gas or steam turbine management systems available. This board functions as a High-Density Power Distribution Board and may be used for one Simplex or for three independent control power buses fed power (RST). This is based in the cable harness feeding supply to J1 and users and operators should refer to manufacturer manual and guides for additional installation information. This board features two 6-position plugs (J1/J1X,) three 2-position plugs (JR5/JS5/JT5,) and twenty-four 2-position plugs (JR1 through JR8, JS1 through JS8, and JT1 through JT8). Additionally, the board has twenty-four varistors that line up with the 2-position plugs (TRR1 through TRR8, TRS1 through TRS8, and TRT1 through TRT8).
