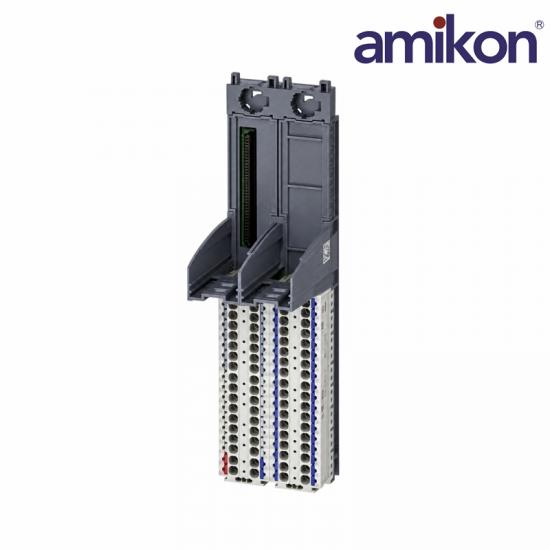

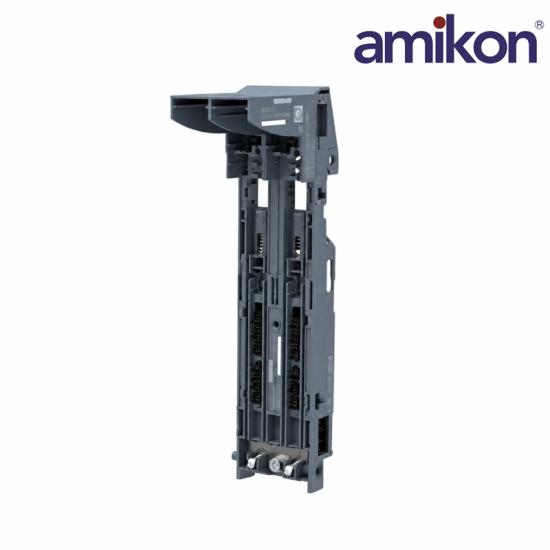

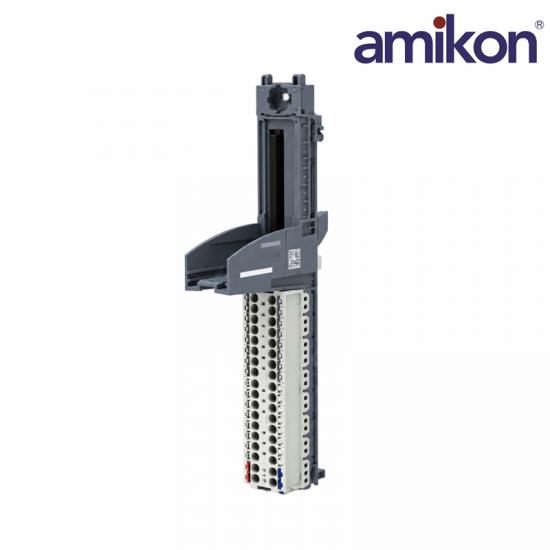

Siemens 6DL1193-6TP00-0DN0 ET 200SP HA Type N0 Terminal Block

6DL1193-6TP00-0DN0
6DL1193-6TP00-0DN0
6DL1193-6TP00-0DN0

Siemens 6DL1193-6TP00-0DN0 ET 200SP HA Type N0 Terminal Block

✉  INQUIRE NOW

SIEMENS · SIMATIC ET 200SP HA

6DL1193-6TP00-0DN0

ET 200SP HA Type N0 Terminal Block

MANUFACTURERSiemens
MODEL6DL1193-6TP00-0DN0
PART NUMBER6DL1193-6TP00-0DN0
PRODUCT TYPEET 200SP HA Type N0 Terminal Block
SYSTEM FAMILYSIMATIC ET 200SP HA
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6DL1193-6TP00-0DN0
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Weight:

    155
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens SIMATIC ET 200SP HA

6DL1193-6TP00-0DN0

Price and Availability Inquiry

The Siemens 6DL1193-6TP00-0DN0 is a ET 200SP HA Type N0 Terminal Block designed for SIMATIC ET 200SP HA applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6DL1193-6TP00-0DN0 and required quantity in your inquiry.

Siemens 6DL1193-6TP00-0DN0

Technical Specifications

Manufacturer-verified technical, installation and physical data for 6DL1193-6TP00-0DN0.

01Product IdentityExact Siemens article data
ManufacturerSiemens
Article Number6DL1193-6TP00-0DN0
Terminal Block TypeN0, light gray
System FamilySIMATIC ET 200SP HA
02Terminal & GroupConnection configuration
Terminal Count64
Connection TypePush-in
Number of Slots1
Potential GroupNew group
03Electrical RatingsSupply and current data
Rated Supply Voltage24 V DC
Group Current at ≤70 °C10 A max.
Process-Terminal Current2 A max.
External Protection10 A, Type B or C
04Physical & EnvironmentDimensions and operating limits
Dimensions45 × 175 × 77 mm
Approx. Weight155 g
Horizontal Operation−40 to +70 °C
Vertical Operation−40 to +60 °C

Siemens 6DL1193-6TP00-0DN0 Product Support

Frequently Asked Questions

Product-specific compatibility, installation and ordering guidance.

01

Which potential-group function is provided by the light-gray N0 block?

It starts a new ET 200SP HA potential group and does not continue the group from the left.

02

How many field terminals are available?

The double-width Type N0 terminal block provides 64 push-in terminals.

03

Which modules can be plugged into this terminal block?

Siemens lists one slot for compatible analog or digital ET 200SP HA I/O modules; verify the module-to-terminal-block assignment table.

04

Which 24 V supply protection is required?

Protect the supply with a 10 A Type B or C miniature circuit breaker or an equivalent fast device-protection fuse.

05

Which current limits apply at high ambient temperature?

At temperatures through 70 °C the potential-group path is rated up to 10 A, while each process terminal is limited to 2 A.

06

Can the dark-gray 0BN0 version be exchanged without reviewing the potential group?

No. The dark-gray version continues the group from the left, while 0DN0 starts a new group.

07

Which installation data should be checked before ordering?

Confirm Type N0, light-gray color, 45 mm width, the new-potential-group requirement and the full 6DL1193-6TP00-0DN0 code.
