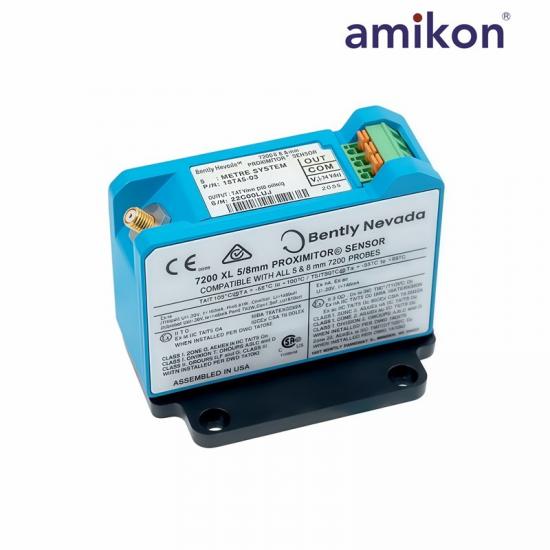

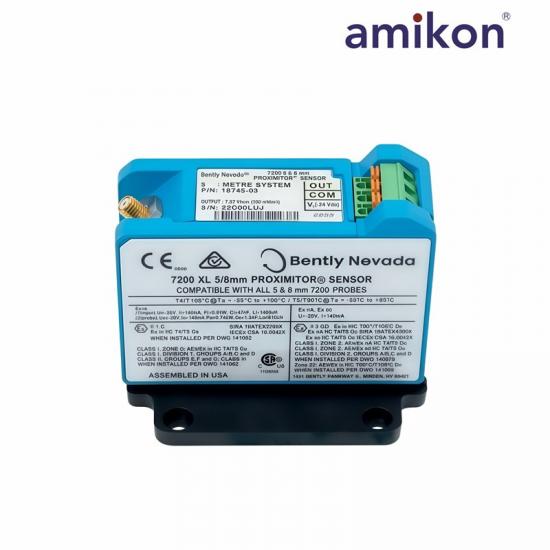

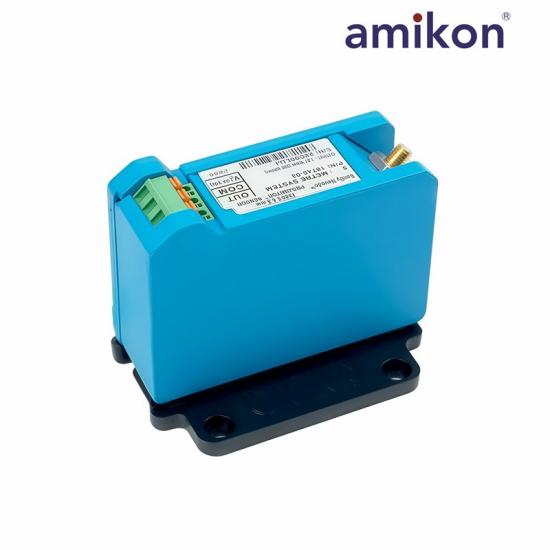

18745-03 Bently Nevada 7200 XL 5/8 mm Proximitor Sensor

Bently Nevada 18745-03 Proximitor Sensor
Bently Nevada 18745-03 Proximitor Sensor
Bently Nevada 18745-03 Proximitor Sensor

18745-03 Bently Nevada 7200 XL 5/8 mm Proximitor Sensor

✉  INQUIRE NOW

7200 XL · PROXIMITOR SENSOR

18745-03

7200 XL 5/8 mm Proximitor Sensor

MANUFACTURERBently Nevada
MODEL18745-03
PLATFORM7200 XL
SYSTEM LENGTH5 metres
PROBE COMPATIBILITY5 and 8 mm 7200 probes
ORIGINUnited States

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    18745-03

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    As indicated on product label

  • Lead Time:

    Contact for current lead time

  • Shipping Port:

    Xiamen

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    United States

  • Lead Time:

    Contact for current lead time

  • Condition:

    New / Surplus Original

  • Certificate:

    Refer to product label
Inquire Now

7200 XL · PROXIMITOR SENSOR

18745-03

7200 XL 5/8 mm Proximitor Sensor

Bently Nevada identifies 18745-03 as the five-metre Proximitor sensor option for the 7200 XL 5/8 mm proximity transducer system.

MODEL18745-03
PRODUCT TYPEProximitor Sensor
DELIVERYDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

YOUR AMIKON CONTACT

Maple Sales Manager

WhatsApp

+86 18030132585

Email

sales16@amikon.cn

Send Email Inquiry

For faster service, please include model 18745-03 and the required quantity.

18745-03

Technical Specifications

Verified identity, compatibility, connection and order information for technical review.

01

Product Identity

Manufacturer and family identification

ManufacturerBently Nevada
Model18745-03
Product functionProximitor sensor
Platform7200 XL 5/8 mm
02

System Compatibility

Probe family and system-length matching

Compatible probes5 mm and 8 mm 7200 probes
System length5 m combined probe and extension cable
Signal sensitivity7.87 V/mm (200 mV/mil)
ApplicationShaft vibration and position measurement
03

Electrical Connections

Field terminals shown on the unit label

Supply terminalV (-24 Vdc)
Common terminalCOM
Output terminalOUT
Installation ruleUse the approved 7200 wiring drawing
04

Ordering and Installation

Checks required before procurement

Order number18745-03
Ordering suffix03 = 5 m system
MountingSecure the sensor on a stable base
Origin markingAssembled in USA

18745-03 PRODUCT SUPPORT

Frequently Asked Questions

Questions engineers and customers commonly ask about 18745-03 compatibility, application, installation, and ordering.

01

Which proximity-probe family is compatible with 18745-03?

The unit label identifies 18745-03 as a 7200 XL 5/8 mm Proximitor Sensor compatible with 5 mm and 8 mm 7200 probes. Confirm the complete probe and extension-cable order codes before installation.

02

What does the -03 option mean for this Proximitor sensor?

For the 18745 Proximitor family, option 03 is the five-metre system option. The combined electrical length of the probe and extension cable must match this five-metre configuration.

03

Can a 9 m probe-and-extension combination be used with 18745-03?

No. Do not mix the five-metre 18745-03 sensor with a nine-metre transducer combination. Use the matching Proximitor option and verify the complete system length.

04

What measurement applications use the 18745-03?

It forms the signal-conditioning part of a compatible 7200 proximity transducer system used for non-contact shaft vibration and shaft-position measurements in rotating machinery.

05

What should an engineer check before installing 18745-03?

Verify the 7200 probe diameter, five-metre total electrical length, extension-cable compatibility, connector condition, mounting location, field wiring, monitor input, and the applicable Bently Nevada installation drawing.

06

How are the field connections identified on the unit?

The product label identifies OUT, COM and V (-24 Vdc) field terminals. Wire these terminals only according to the approved 7200 system drawing and site electrical practice.

07

Is 18745-03 a complete proximity measurement system by itself?

No. It is the Proximitor sensor. A working measurement loop also requires a compatible 7200 probe, the correctly matched extension cable when applicable, field wiring, and a suitable monitoring channel.
