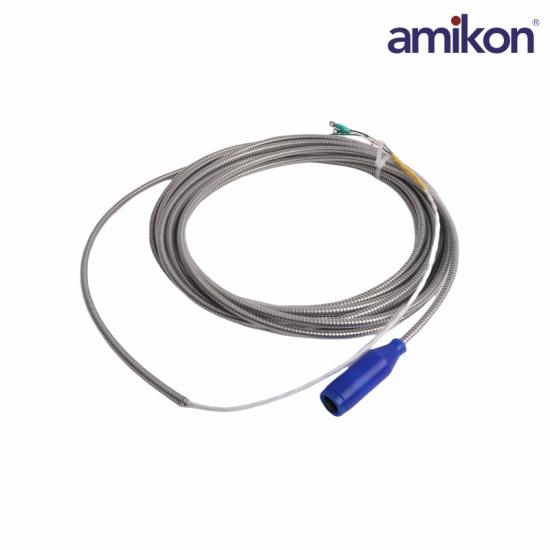

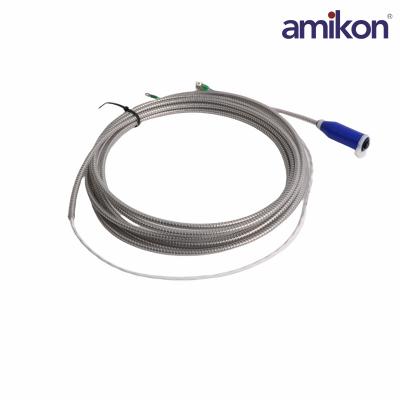

The Bently Nevada 106765-12 is a premium, industrial-grade, 2-conductor shielded interconnect cable assembly designed explicitly for the predictive maintenance sector. Spanning a pre-terminated factory length of 12 feet (approximately 3.6 meters), this assembly acts as the critical data artery between high-reliability machinery sensors and central monitoring racks.It is engineered primarily to interface with the Bently Nevada 330500 Velomitor and 330525 Velomitor XA (Extended Application) piezoelectric velocity sensors. The cable extracts raw, high-frequency AC acceleration or velocity signals from rotating machinery and feeds them into signal conditioning units, cross-over junction boxes, or the Bently Nevada 3500/42M Proximitor/Seismic Monitors.

Frequently Asked Questions

What is the default connector type on this cable?

It features a standard 2-pin MIL-C-5015 terminal connector on the sensor end, sealed with a moisture-resistant boot.

What is the wire gauge used in the 106765-12?

It uses 22 AWG twisted-pair stranded conductors to maximize signal flexibility and minimize resistance.

What is the operating temperature range of the 106765-12?

It operates reliably in extreme temperatures ranging from -40°C to +100°C (-40°F to +212°F).

What is the minimum bend radius for installing this cable?

The recommended minimum bend radius is 50 mm (2.0 inches). Avoid sharp kinks during routing.

Product Applications

Oil and gas chemical plants: Used to monitor the vibration and displacement of large compressors, pump sets, and steam turbines in oil refineries and natural gas liquefaction plants.

Thermal and hydroelectric power plants: Used on large rotating machinery such as generator sets, steam turbines, and water turbines.

Metallurgical and steel plants: Used for monitoring the high-load bearings of large blowers and rolling mills.

Heavy manufacturing and mining plants: Used on critical rotating assets such as large ore dressing machines, crushers, and large ventilation fans.
