Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

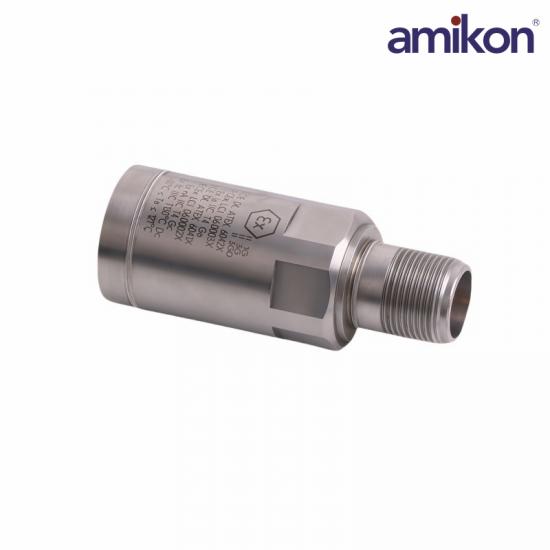

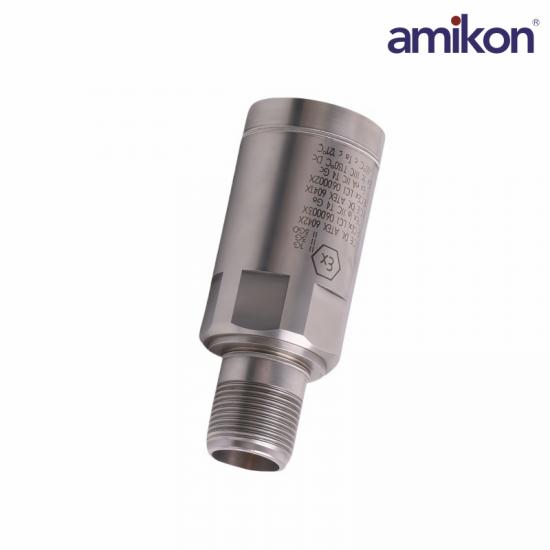

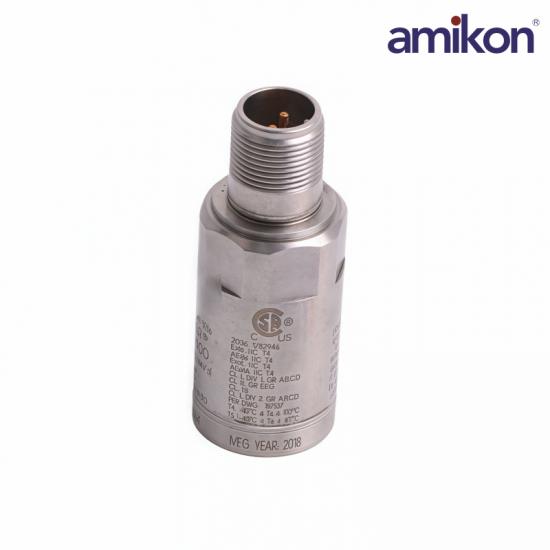

The Bently Nevada 107770-03-03 is a specialized component designedfor industrial machinery vibration monitoring. It is a housing unit thataccommodates a piezoelectric velocity sensor, a type of transducerused to measure the speed of vibrating surfaces. This particular modelis often employed in condition monitoring systems to detect potentialmechanical faults and ensure optimal equipment performance.
Specification：
|
Model Number |
107770-03-03 |
|
Mounting Thread |
1/2-14 NPT |
|
Typical Weight |
142 g (5.0 oz) |
|
Outer Diameter |
25.3 mm (0.995 in) |
|
Overall Height |
63.2 mm (2.49 in) |
|
Housing Material |
316L stainless steel |
|
Max Mounting Torque |
32–46 kg·cm (24–40 in-lb) |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Temperature Sensitivity |
-14% ~ +7.5% across full operating range |
|
Peak Velocity Range |
Up to 1270 mm/s peak |
|
Primary Frequency Response |
4.5 Hz ~ 5 kHz (±3.0 dB) |
|
Secondary Frequency Response |
6 Hz ~ 2.5 kHz (±0.9 dB) |
|
Amplitude Linearity |
±2% up to 152 mm/s peak |
|
Mounted Resonant Frequency |
>12 kHz |
|
Shock Rating |
5000 g peak |
|
Max Allowable Cable Length |
Up to 305 m |
Frequently asked questions
Q1: What is the Bently Nevada 107770-03-03 Velocity Transducer used for?
A1: It is used for vibration velocity measurement and condition monitoring of rotating machinery.
Q2: What is the 107770-03-03 maximum velocity range of the transducer?
A2: The v107770-03-03 elocity range is up to 1270 mm/s peak.
Q3: What is the 107770-03-03 frequency response range?
A3: The 107770-03-03 frequency response is 4.5 Hz to 5 kHz (±3.0 dB).
Q4: What is the 107770-03-03 shock survivability rating?
A4: The transducer can withstand shocks up to 5000 g peak.
Q5: What are the advantages of the 107770-03-03 Velocity Transducer?
A5: It offers wide frequency response, high shock resistance, and accurate vibration measurement.
Product Applications
Oil and Gas: Monitoring the vibration of casings in large centrifugal compressors, reciprocating compressors, and expanders.
Power Plants: Protecting the bearing housings and casings of steam turbines, gas turbines, induced draft fans, and forced draft fans.
Petrochemicals: Real-time vibration monitoring of pumps and fans in various high-risk explosion-proof areas (such as CENELEC-certified explosion-proof areas).
Water Resources and Heavy Industry: Online status monitoring of large water pump units, coal mills, centrifuges, and air-cooled equipment.
