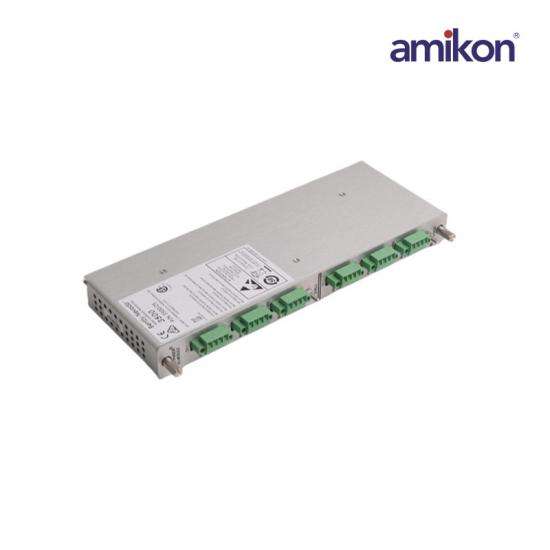

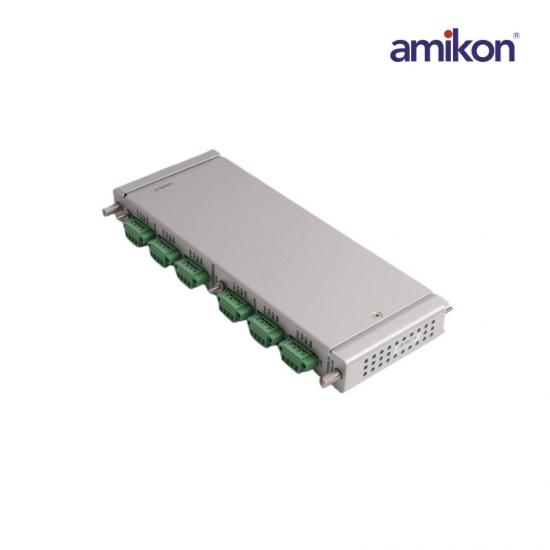

125800-01 Barrier Keyphasor I/O Module

Dimensions ：

2.5x11.2x24.2cm

Weight：

0.38kg

Power Consumption：

7.5watts typical

Humidity：

85%, noncondensing

Storage Temperature ：

-40°C to +85°C

Operating Temperature：

-30°C to +65°C

The 125800-01 is a Barrier Keyphasor I/O Module with internal terminations.It is a part of the Bently Nevada 3500/25.The 3500/25 Enhanced Keyphasor Module is a half-height,two-channel module used to provide Keyphasor signals tothe monitor modules in a 3500 rack. The module receivesinput signals from proximity probes or magnetic pickups andconverts the signals to digital Keyphasor signals that indicatewhen the Keyphasor mark on the shaft coincides with theKeyphasor transducer. The 3500 Machinery ProtectionSystem can accept up to four Keyphasor signals for normalconfiguration and up to eight Keyphasor signals in a pairedconfiguration.
