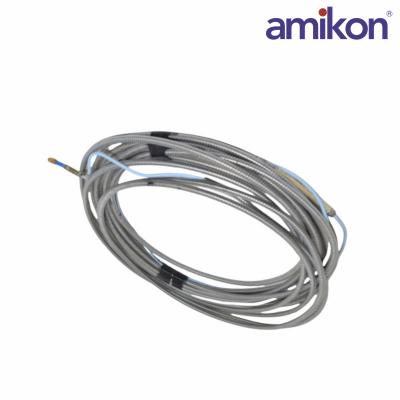

The Bently Nevada 128987-130-01-05 3300XL 8mm Proximity Sensor Probe is a high-precision, non-contact eddy current proximity probe designed for monitoring displacement and vibration in critical rotating machinery. Part of the 3300XL series, this probe offers reliable performance and accuracy, making it suitable for use in harsh industrial environments.

Model: 128987-130-01-05

Series: Bently Nevada 3300XL 8mm Proximity Probe

Sensor Type: Eddy current proximity sensor probe

Application: Used for measuring shaft displacement, vibration, and axial position, providing critical data for predictive maintenance and machinery health monitoring.

128987-130-01-05 Probe：8mm probe tip, suitable for installations in standard 8mm mounting brackets or locations.

128987-130-01-05 Effective measurement range of 0 to 80 mils (0 to 2mm), allowing for high-precision monitoring of small displacements.

128987-130-01-05 Linear Range: 0 to 2mm (0 to 80 mils).

Nominal probe sensitivity of 7.87 mV/μm (200 mV/mil), providing accurate displacement readings for critical machinery.

Dynamic voltage output proportional to displacement, suitable for integration with monitoring systems like the Bently Nevada 3500 series or other compatible systems.

128987-130-01-05 Capable of measuring up to 10 kHz, providing reliable data for high-speed rotating machinery.

The “130” in the 128987-130-01-05 model number indicates a total system length of 9 meters (30 feet), including both the probe cable and the extension cable (probe: 1 meter, extension cable: 8 meters).

128987-130-01-05 Operating Temperature: -35°C to +177°C (-31°F to +350°F), making it suitable for high-temperature applications.

Storage Temperature: -51°C to +177°C (-60°F to +350°F).
