Description：

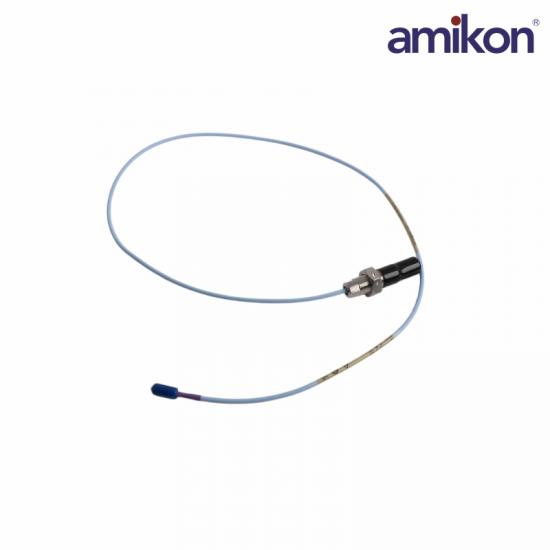

The 3300 Ceramic Capped Probe is a state-of-the-artsolution for monitoring machinery in aggressive chemical orhigh-pressure environments. The alumina cap and 304stainless steel probe case provide robust protection andincreased life for applications in anhydrous ammonia orother extreme pH environments. The ceramic capped probeis compatible with the 3300 Proximitor Sensor and extensioncable.

Our Bently Nevada ceramic-capped probes are rated to 34 Bar (500 psi) pressure. Modifications are available for applications involving higher pressures.

The 146054, 146055, and 164517 probes were developed forapplications that expose only the front of the probe caseassembly to corrosive gases and liquids. These ceramicprobe assemblies prevent corrosive gases and liquids fromentering the front end of the probe case. We leak test thefront-end ceramic to metal interface with helium to ensure ahermetic seal. These probes do not have a rear fitting orstainless steel tube, so that the rear of the probes are notsealed. You must not expose the rear of these probes todestructive environments such as water, NH3, NHaOH,hydrogen sulfide, etc.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 146054-010-20-02-05 Ceramic Capped Probe used for?

A1: The Bently Nevada 146054-010-20-02-05 Ceramic Capped Probe is a non-contact proximity probe designed to measure shaft vibration, axial position, runout, and displacement in rotating machinery.

Q2: What is the linear measurement range of the 146054-010-20-02-05 probe?

A2: The 146054-010-20-02-05 probe offers a linear measurement range of 1.52 mm (60 mils), ensuring accurate and repeatable displacement measurements within its calibrated operating range.

Q3: What is the 146054-010-20-02-05 recommended gap setting?

A3: The 146054-010-20-02-05 recommended installation gap is 1.0 mm (40 mils), which provides optimal measurement accuracy and stable probe performance.

Q4: What does Overall Case Length Option (010) indicate?

A4: Overall Case Length Option (010) specifies a probe case length of 0.10 inches, making it suitable for installations where a compact probe body is required.

Product Applications

Oil & Gas: High-pressure natural gas compressors, centrifugal compressors, large oil pumps, liquefied natural gas (LNG) units.

Chemical & Refining: Process pumps, reactor mixers, specialty gas compressors.

Power Generation: High-pressure steam turbines, gas turbines, feedwater pump units.

High-Pressure Water Pumps: High-pressure water injection pumps, large boiler feedwater pumps.
