Description：

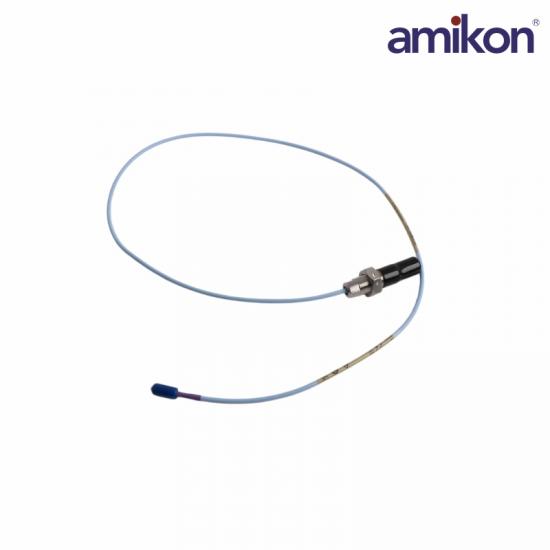

The 3300 Ceramic Capped Probe is a state-of-the-artsolution for monitoring machinery in aggressive chemical orhigh-pressure environments. The alumina cap and 304stainless steel probe case provide robust protection andincreased life for applications in anhydrous ammonia orother extreme pH environments. The ceramic capped probeis compatible with the 3300 Proximitor Sensor and extension cable.

Our Bently Nevada ceramic-capped probes are rated to 34Bar (500 psi) pressure. Modifications are available forapplications involving higher pressures.

The 146054, 146055, and 164517 probes were developed forapplications that expose only the front of the probe caseassembly to corrosive gases and liquids. These ceramicprobe assemblies prevent corrosive gases and liquids fromentering the front end of the probe case. We leak test thefront-end ceramic to metal interface with helium to ensure ahermetic seal. These probes do not have a rear fitting orstainless steel tube, so that the rear of the probes are notsealed. You must not expose the rear of these probes todestructive environments such as water, NH3, NHaOH,hydrogen sulfide, etc.

Specification：

Frequently asked questions

Q1: What is the overall case length of the Bently Nevada 146054-14-10-02-00 probe?

A: This 146054-14-10-02-00 probe has an overall case length of 1.4 inches, making it suitable for installations with limited mounting space.

Q2: What is the total cable length of the 146054-14-10-02-00 Ceramic Capped Probe?

A: The 146054-14-10-02-00 probe comes with a total length of 1.0 meter (3.3 feet), providing flexibility for machinery monitoring applications.

Q3: What is the linear measurement range of this 146054-14-10-02-00 probe?

A: The 146054-14-10-02-00 probe offers a linear range of 1.52 mm (60 mils), enabling accurate shaft displacement and vibration measurements.

Q4: What is the recommended gap setting for the 146054-14-10-02-00 probe?

A: The 146054-14-10-02-00 recommended gap setting is 1.0 mm (40 mils) to ensure optimal measurement accuracy and system performance.

Product Applications

Fertilizer and Ammonia Industry: In compressor environments rich in ammonia, highly alkaline, or highly toxic and corrosive gases, such as those used in anhydrous ammonia and urea production, ordinary plastic end cap probes are prone to degradation and aging. This ceramic probe is the preferred standard asset protection solution.

Oil & Gas: Used for monitoring shaft vibration and displacement in high-pressure centrifugal compressors, reciprocating compressors, and expanders in oil refineries and natural gas gathering and transmission stations.

Chemical Processing: Widely used for monitoring the internal condition of bearing housings in various reaction vessels, mixers, and pumps transporting strong acids and alkalis, preventing sensor corrosion from extreme pH media.

Large Industrial Pumps and Water Treatment: Monitors the dynamic clearance and vibration of rotors in high-pressure water injection pumps, boiler feed pumps, and certain large pump sets used in industrial wastewater/sewage treatment containing chemical agents.
