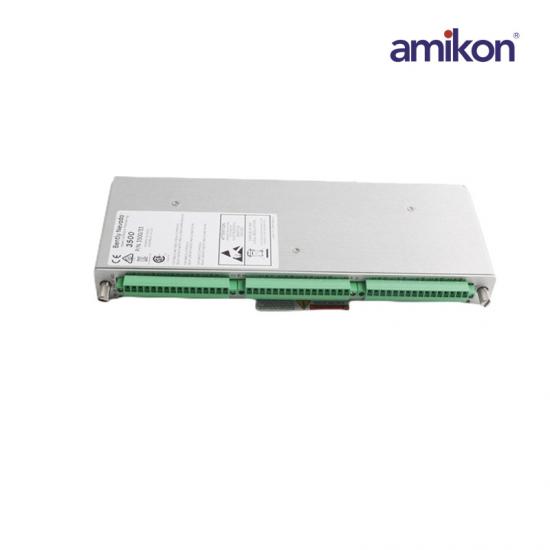

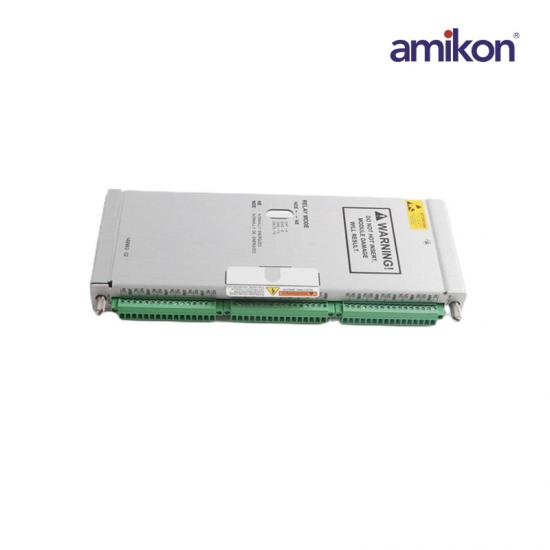

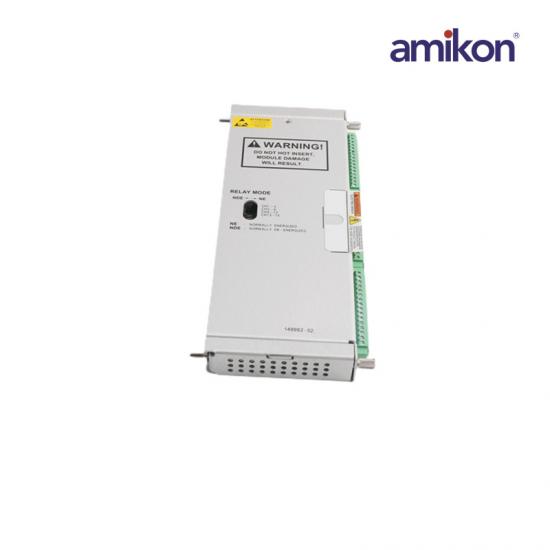

149992-02 Failsafe Relay Output Module

Dimensions ：

2.5x11x24cm

Weight：

0.52kg

Max Switched Voltage：

 125 Vdc

Max Switched Current：

3 A

Storage Temperature ：

-30 °C to +65 °C

Operating Temperature：

 30°C to +65 °C

149992-02 is a 16-Channel Failsafe Relay Output Module developed by Bently Nevada. It is a part of the Bently Nevada 3500/33.The 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16- channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.

Each output of the 16-Channel Relay Module can be independently programmed to perform voting logic. Each relay of the module includes Alarm Drive Logic. You can program the Alarm Drive using the 3500 Rack Configuration Software.
