The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

Dimensions ：

27x27x4cm

Weight：

0.96kg

Frequency Response：

10 to 20 kHz

Humidity：

95%, noncondensing

Storage Temperature ：

0 °C to 100 °C

Operating Temperature：

-29°C to +121°C

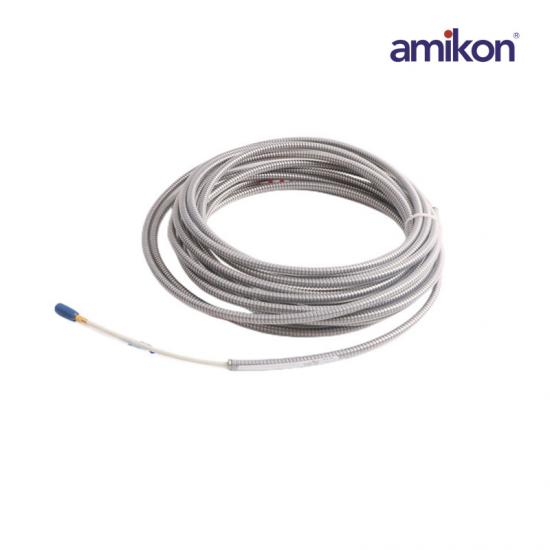

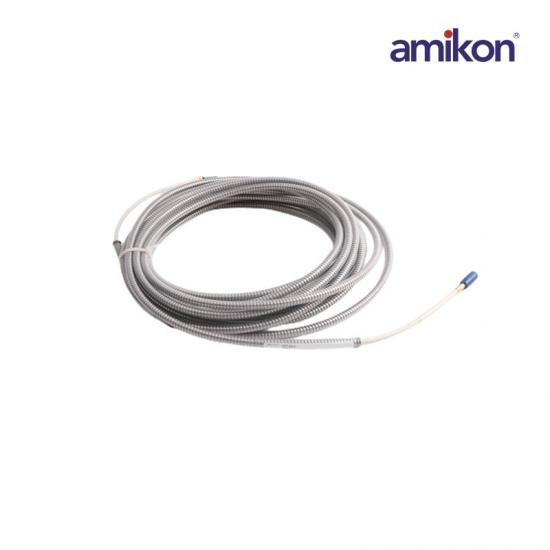

The 18622-030-01 is Extension Cable. Extension Cables can also be ordered with a FluidLoc® cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment.

ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc™ molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc™ design that provides 330 N (75 lb) pull strength.3300 XL Probes and Extension Cables can also be ordered with a FluidLoc® cable option.
