The 1900/65A provides four transducer inputs and four temperature inputs. Software can configure each transducer input to support 2- and 3-wire accelerometers, velocity sensors or proximity sensors. Each temperature input supports Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs.

Dimensions ：

3x17.2x27cm

Weight：

0.66kg

Input Impedance：

48 Ω

Humidity：

95%, noncondensing

Voltage ：

5 to +24 Vdc

Power consumption：

5.6 watts

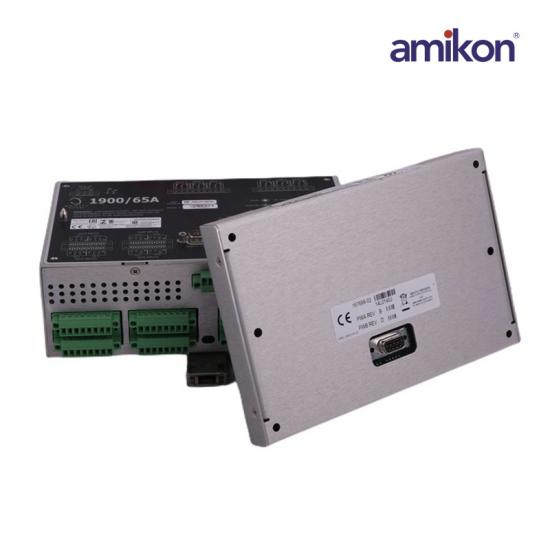

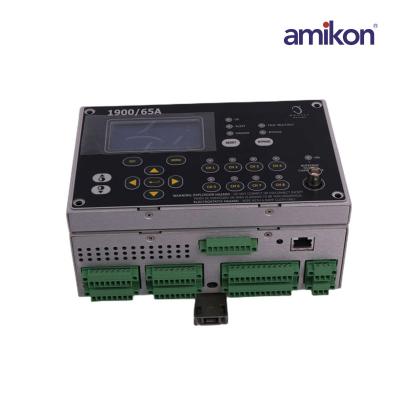

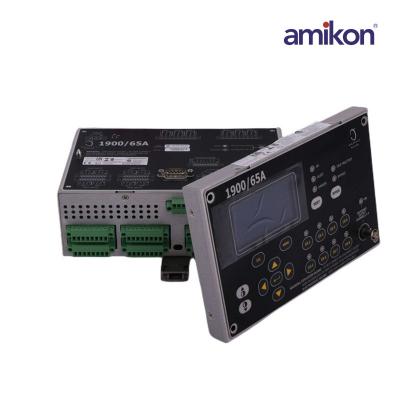

The 1900/65A General Purpose Equipment Monitor isdesigned to continuously monitor and protect equipment thatis used in a variety of applications and industries. Themonitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit fromcontinuous monitoring and protection.The 1900/65A supports an optionaldisplay/keypad to view channel information ormake minor configuration changes. This allowsthe 1900/65A to operate as a stand-alonepackage. If desired, the user can mount thedisplay up to 75 metres (250 feet) from theMonitor Module.

Each 2201 System consists of a System Monitor, up to six Four-Channel Monitors, and a Monitoring System Backplane.
