Manufacturer : Bently Nevada

Product No.  : 190501-00-00-04

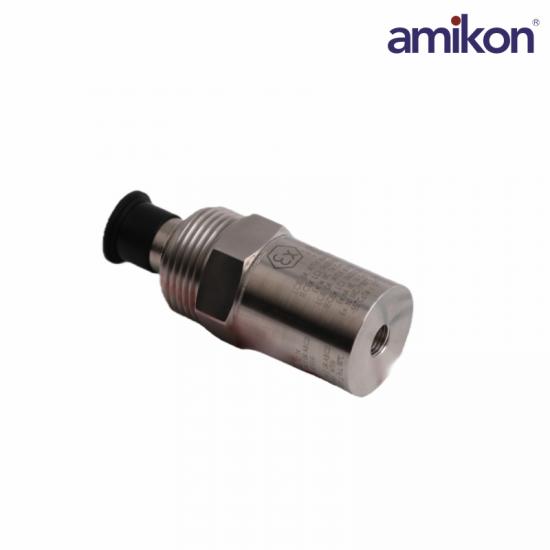

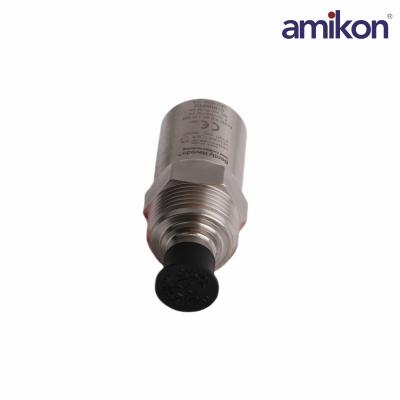

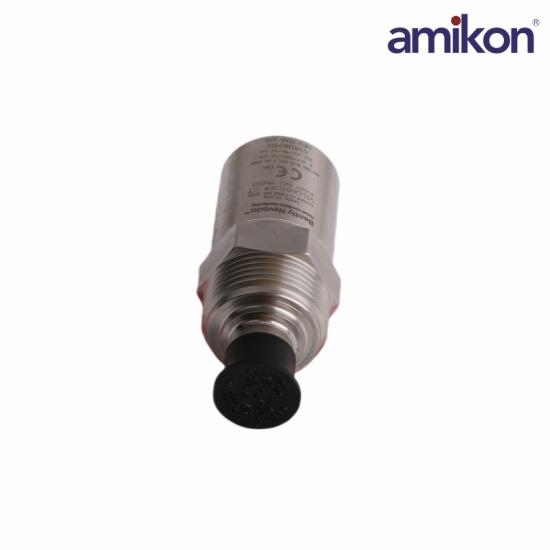

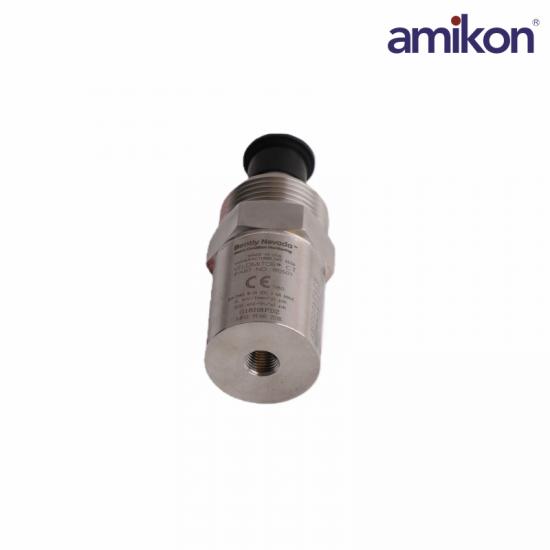

Product type : 190501 Velomitor CT Velocity Transducer

Made in U.S.A

Can add on Certificate Of Origin (COO)

Mounting Hardware Option : 00 = No stud

Connection Option : 00 = MIL-C-5015 connection interface

Agency Approval Option : 04 = Multiple approvals

Mounting Surface : 33 mm diameter (1.3 in diameter).

Storage Temperature : -40 °C to +100 °C (-40 °F to +212 °F).

Operating Temperature : -40 °C to +85 °C (-40 °F to +185 °F).

Mounting Torque : 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf).

Connector : 2-pin 316L stainless steel MIL-C5015, top.

Case Material : 316L stainless steel

Height : 8.2 cm (3.2 in).

Weight : 0.297 Kg

Shipping Weight : 1.3 Kg

The Velomitor CT Velocity Transducer is a low-frequencyversion of our standard Velomitor Piezo-velocity Sensor. itsdesign specifically measures casing vibration velocity oncooling tower and air-cooled heat-exchanger fanassemblies that operate at or above 90 rpm (100 to 300 rpmtypical).

The Velomitor CT Transducer can measure vibrationamplitudes at these frequencies as well as the vibrationfrequencies generated by the fan motor and speed reducer.
