Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooPart Number:190501-01-00-04

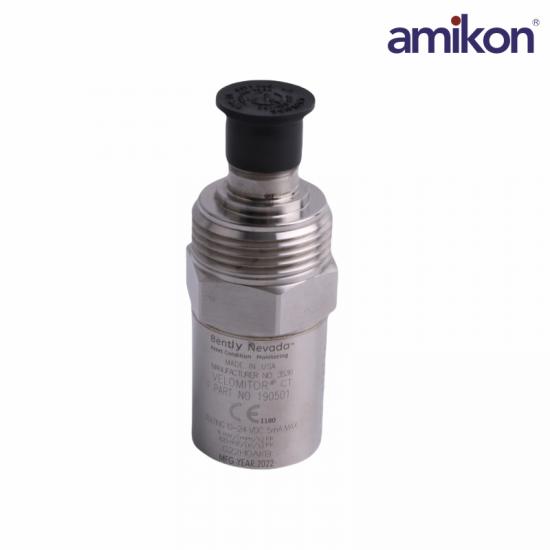

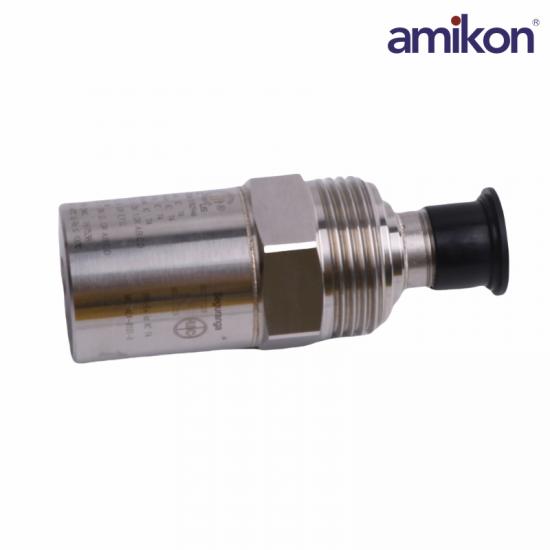

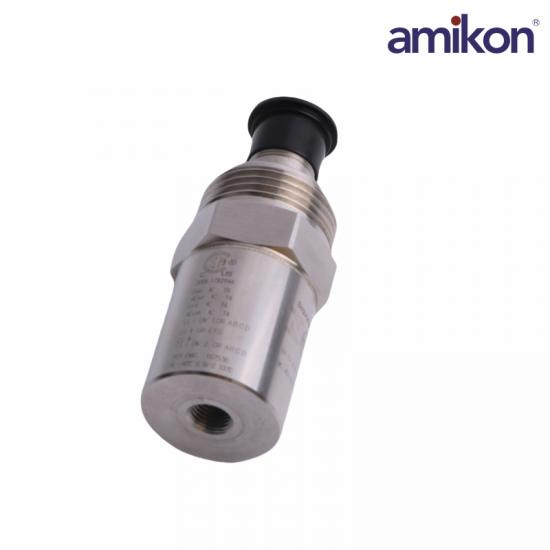

Type:Velomitor CT Velocity Transducer
Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB
Transverse Response: Less than 5% of the axial sensitivity
Amplitude Linearity: ±2% to 63.5 mm/s peak (2.5 in/s peak)
Mounted Resonant Frequency: 9 kHz minimum (stud mounted, except quick disconnect)
Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
Dynamic Output Impedance: <400 Ω typical
Broadband Noise: 0.229 mm/s (0.009 in/s) peak
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +100°C (-40°F to +212°F)
The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
