Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Part Number: |
190501-01-99-01 |
|
Manufacturer: |
Bently Nevada |
|
Product Type: |
Proximity Sensor |
|
Sensitivity： |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Temperature Sensitivity： |
-8% to +5% typical over the operating temperature range |
|
Transverse Response： |
Less than 5% of the axial sensitivity |
|
Base Strain Sensitivity: |
0.43 mm/s/μstrain (0.017 in/s/μstrain) |
|
Grounding: |
Internal electronics are isolated from case |
|
Operating Temperature: |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature: |
-40°C to +100°C (-40°F to +212°F) |
|
Shock Limit: |
5000 g pk, maximum |
|
Humidity Limit: |
100% condensing, non-submerged |
|
Mounting Surface: |
33 mm diameter (1.3 in diameter) |
|
Case Material: |
316L stainless steel |
|
Dimension: |
3.6x3.1x10cm |
|
Weight: |
0.38kg |

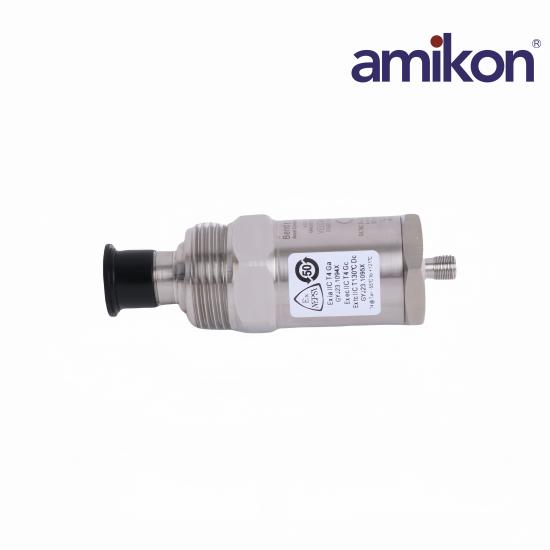

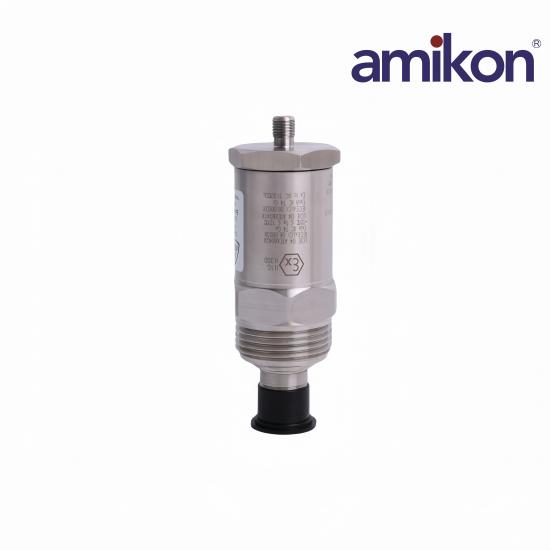

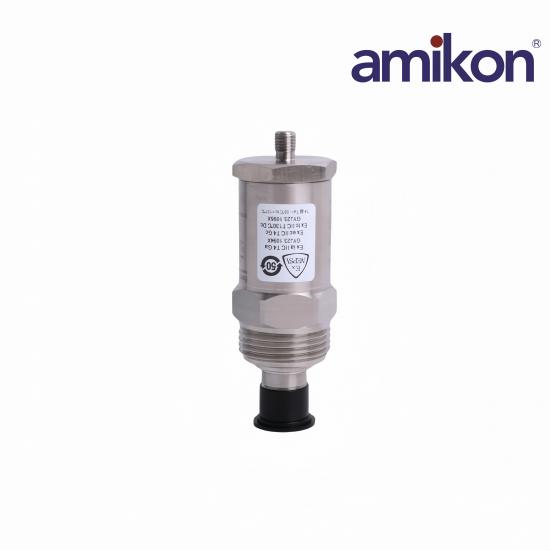

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer. In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes. Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
