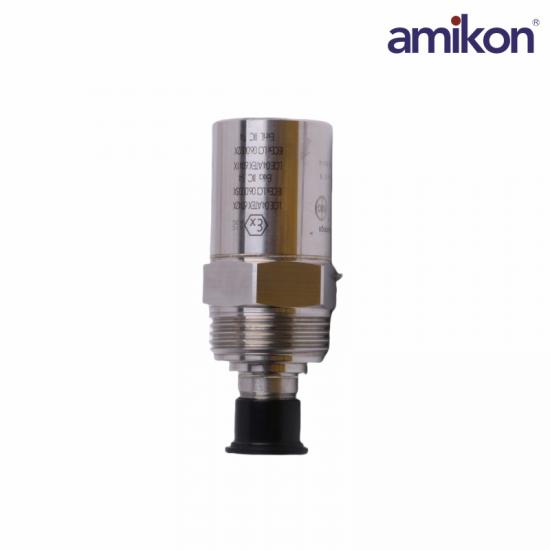

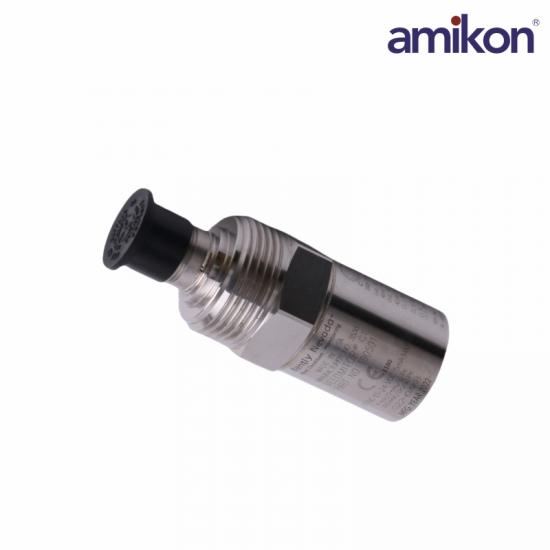

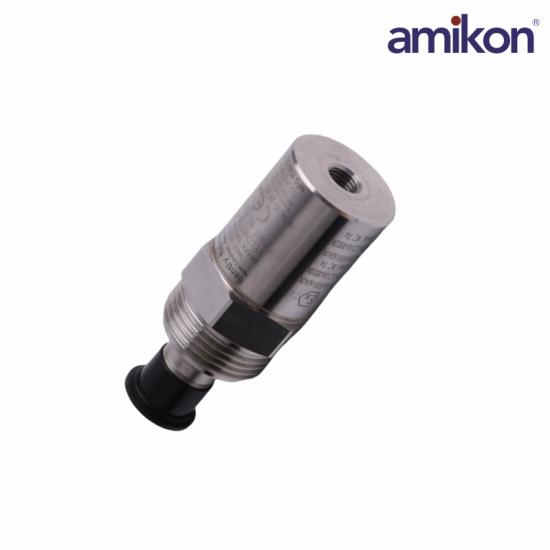

The Velomitor CT Velocity Transducer is a low-frequency version of the standard Velomitor Piezo-velocity Sensor. It is specifically designed to measure casing vibration velocity on cooling tower and air-cooled heat exchanger fan assemblies that operate at or above 90 rpm (typically 100 to 300 rpm). The Velomitor CT Transducer is capable of measuring vibration amplitudes at these frequencies, as well as the vibration frequencies generated by the fan motor and speed reducer.

In addition, it is important to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may reduce the transducer’s amplitude and frequency response, or generate false signals that do not accurately represent actual vibration. Refer to the appropriate instruction manuals and Application Notes for proper installation guidelines.

Upon request, Bently Nevada provides engineering services to identify the appropriate machine housing measurements and offer installation assistance if needed.

Frequently Asked Questions

Q1: What does the "-06" suffix signify in the 190501-06-00-CN model number?

A: The "-06" indicates the specific mounting hardware option. It confirms the unit includes a 3/8"-24 to 1/4"-28 thread stud adapter for installation.

Q2: What is the measurement accuracy of the 190501-06-00-CN?

A: This transducer features excellent amplitude linearity of ±2% for vibration levels up to 63.5 mm/s pk (2.5 in/s pk), ensuring precise data for machinery health monitoring.

Q3: What are the 190501-06-00-CN environmental operating limits for this sensor?

A: It is designed to operate in a wide temperature range, from -40°C to +85°C (-40°F to +185°F), making it suitable for diverse industrial climates.

Q4: What is the 190501-06-00-CN significance of the "-CN" designation?

A: The "-CN" suffix indicates that the product carries CNEX (China) certification, meeting specific explosion-proof and safety standards required for hazardous areas within the Chinese market.

Product Applications

Electricity industry: Used for vibration monitoring of hydroelectric generating units, cooling tower fans, and low-speed auxiliary equipment to ensure the stability of the power generation system.

Oil and gas: Monitor the shell vibration of reciprocating compressors, pump sets, and centrifuges in flammable and explosive hazardous areas (supported by the -CN certification system).

Chemical and petrochemical: Monitor the mechanical health status of mixers, blowers, and large motor bearing boxes to prevent production disruptions.

Metallurgy and mining: Applied for real-time monitoring of large ball mills, crushers, and other low-speed heavy equipment.

Papermaking and water treatment: Used for low-frequency vibration analysis of large paper machine rollers and water treatment pump stations.
