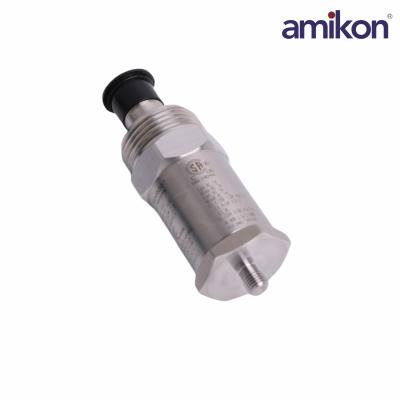

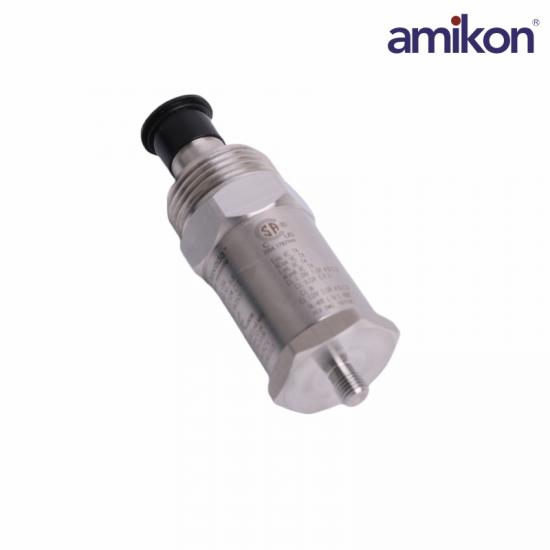

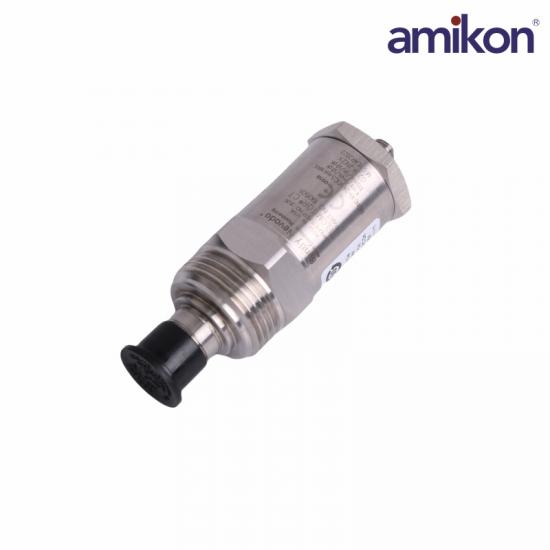

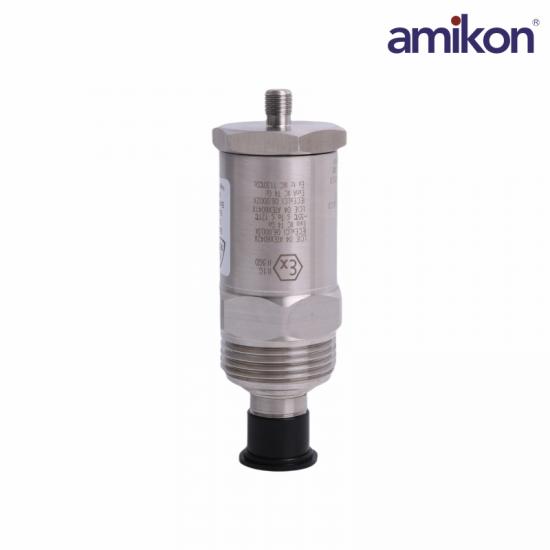

Brand: Bently Nevada

Model: 190501-10-99-00

Type: Velocity Transducer

Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%.

Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB.

Transverse Response: Less than 5% of the axial sensitivity.

Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk).

Mounted Resonant Frequency: 9 kHz, minimum (stud mounted, except quick disconnect).

Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B.

Dynamic Output Impedance: <400 Ω typical.

Broadband: 0.229 mm/s (0.009 in/s) pk.

A: Connection Option

0 0: MIL-C-5015 connection interface

9 9: Unit with included 32-foot cable

B: Agency Approval Option

0 0: No Approvals

0 1 through 0 4: CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1)

The Velomitor CT Velocity Transducer is a low-frequency version of the standard Velomitor Piezo-velocity Sensor. It is specifically designed to measure casing vibration velocity on cooling tower and air-cooled heat exchanger fan assemblies that operate at or above 90 rpm (typically 100 to 300 rpm). The Velomitor CT Transducer is capable of measuring vibration amplitudes at these frequencies, as well as the vibration frequencies generated by the fan motor and speed reducer.

In addition, it is important to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may reduce the transducer’s amplitude and frequency response, or generate false signals that do not accurately represent actual vibration. Refer to the appropriate instruction manuals and Application Notes for proper installation guidelines.

Upon request, Bently Nevada provides engineering services to identify the appropriate machine housing measurements and offer installation assistance if needed.
