Manufacturer: Bently Nevada

Part number: 190501-10-99-04

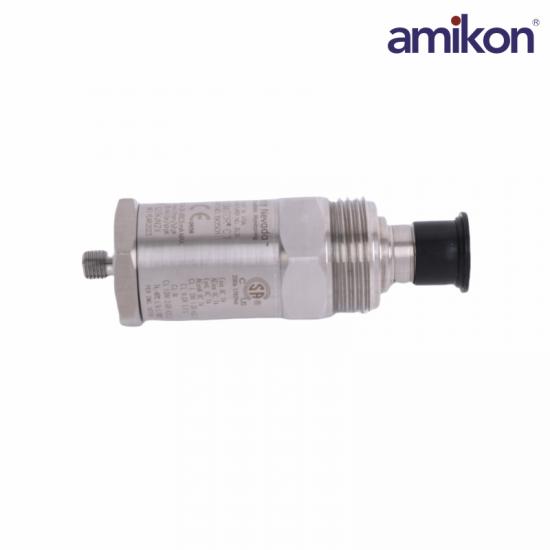

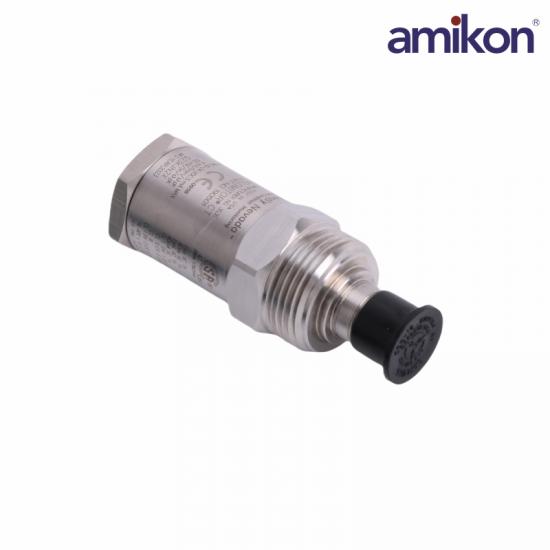

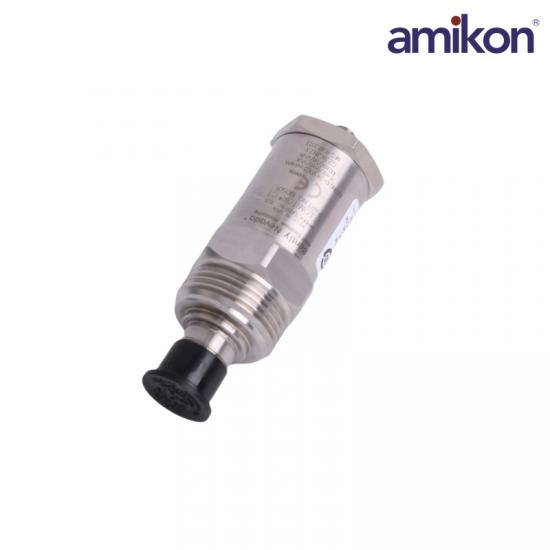

Product type :Velomitor CT Velocity Transducer

Operating Temperature: -40°C to +85°C (-40°F to +185°F)

Storage Temperature: -40°C to +100°C (-40°F to +212°F)

Shock Limit: 5000 g pk, maximum

Humidity Limit: 100% condensing, non-submerged

Magnetic Field Susceptibility: <0.0068 mm/s/gauss (0.268 mil/s/gauss) @ 50 gauss, 50-60Hz

Transverse Response: Less than 5% of the axial sensitivity

Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk)

Mounted Resonant Frequency: 9 kHz, minimum (stud mounted, except quick disconnect)

Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B

Dynamic Output Impedance: <400 Ω typical

Broadband: 0.229 mm/s (0.009 in/s) pk

The Velomitor CT Velocity Transducer is a specialized low-frequency version of the standard Velomitor Piezo-velocity Sensor. This device is specifically designed to measure casing vibration velocity in cooling tower and air-cooled heat exchanger fan assemblies, typically operating at speeds ranging from 100 to 300 rpm, but it can also function effectively for units running at or above 90 rpm. The Velomitor CT Transducer is capable of detecting vibration amplitudes at these operational frequencies, as well as the vibration frequencies generated by the fan motor and speed reducer.

A key aspect of its design is its ability to monitor the rotor vibrations that are indicative of common machine malfunctions, such as unbalance or misalignment. These faults often originate in the rotor, and for effective overall machine protection, it is essential that the system continuously transmits a significant amount of rotor vibration to the machine casing, or to the location where the transducer is mounted.

To ensure optimal performance, it is crucial to install the accelerometer transducer properly on the bearing housing or machine casing. Incorrect installation can lead to a decrease in the transducer's amplitude and frequency response, or may even produce false signals that do not accurately represent the actual vibration of the system. For detailed guidance, it is recommended to consult the relevant instruction manuals and Application Notes.

Bently Nevada also offers engineering services upon request, which can help identify the proper measurement locations on the machine housing and provide installation assistance if needed.
