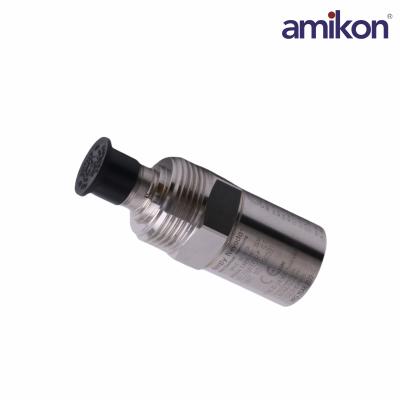

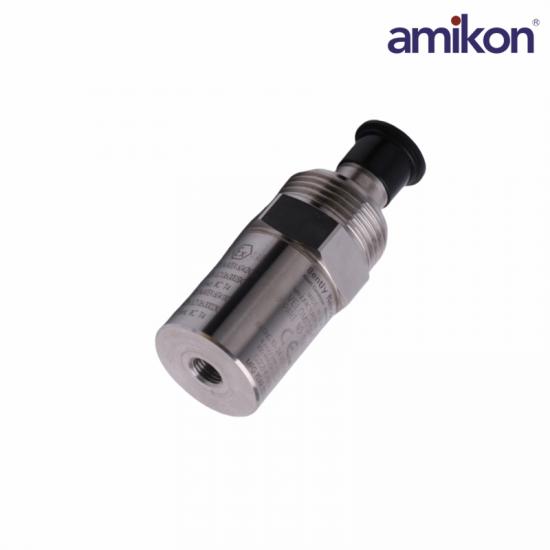

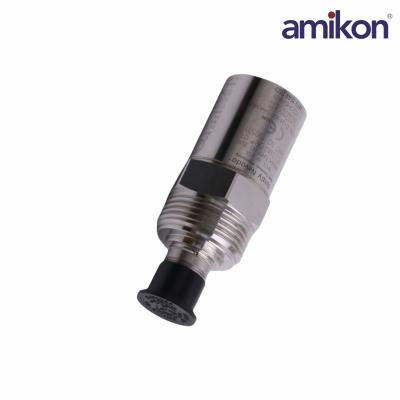

The Velomitor CT Velocity Transducer is a low-frequency version of the standard Velomitor Piezo-velocity Sensor. Its design is specifically intended to measure casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (with 100 to 300 rpm being typical).

The Velomitor CT Transducer is capable of measuring vibration amplitudes at these frequencies, as well as the vibration frequencies generated by the fan motor and speed reducer.

In addition, be careful when installing the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer's amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes for proper installation guidelines.

Upon request, Bently Nevada provides engineering services that can assist in identifying the appropriate machine housing measurements and offer installation assistance if needed.

Frequently Asked Questions

Q1: What is the Bently Nevada 190501-16-00-04?

A1: It is a velocity transducer designed for measuring vibration velocity in rotating machinery for condition monitoring and protection applications.

Q2: What is the 190501-16-00-04 sensitivity of this transducer?

A2: The 190501-16-00-04 sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5%, ensuring accurate vibration measurement.

Q3: What is the 190501-16-00-04 operating temperature range?

A3: The transducer operates within −40°C to +85°C (−40°F to +185°F).

Q4: What material is used for the housing?

A4: The 190501-16-00-04 case is made of 316L stainless steel, providing strong corrosion resistance and durability in harsh environments.

Q5: What is the 190501-16-00-04 primary function of this velocity transducer?

A5: It converts mechanical vibration into an electrical signal proportional to velocity, enabling accurate machine condition monitoring.

Product Applications

Electric power industry: Monitoring the vibration of bearing housings and shells of large rotating machinery such as steam turbines and generators.

Petroleum and natural gas industry: Used for bearing vibration monitoring of pumps, compressors, and fans, etc.

Chemical and petrochemical industry: Monitoring the vibration of centrifuges, mixers, etc. in high-risk production environments.

Metallurgy and mining: Applied to key infrastructure such as fans and water pumps.
