Model Number |
190501-20-99-04 |
|
Mounting Hardware ( 20) |
Adapter, 3/8-in 24 to 3/8-in 18 NPT |
|
Connection Mode ( 99) |
Unit with included 32-foot cable |
|
Certification Approval ( 04) |
CSA/NRTL/C (Class I, Division 1),ATEX/IECEx/CSA (Class I,Zone0/1) |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response |
3.0 Hz ~ 900 Hz |
|
Operating Temperature |
-40°C ~ +85°C (-40°F ~ +185°F) |
|
Storage Temperature |
-40°C ~ +100°C (-40°F ~ +212°F) |
|
Dynamic Output Impedance |
Typical value ＜400 Ω |

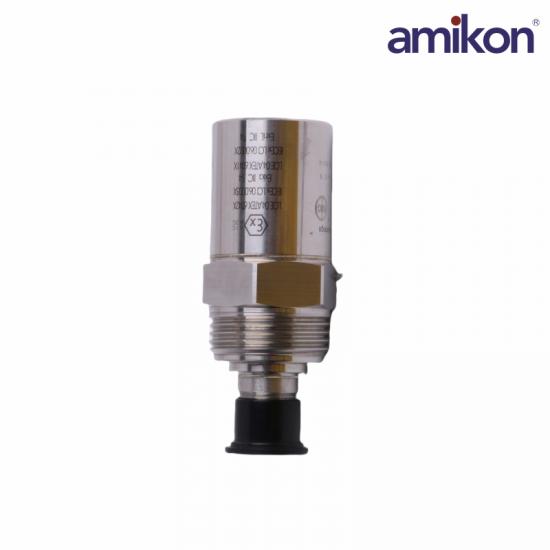

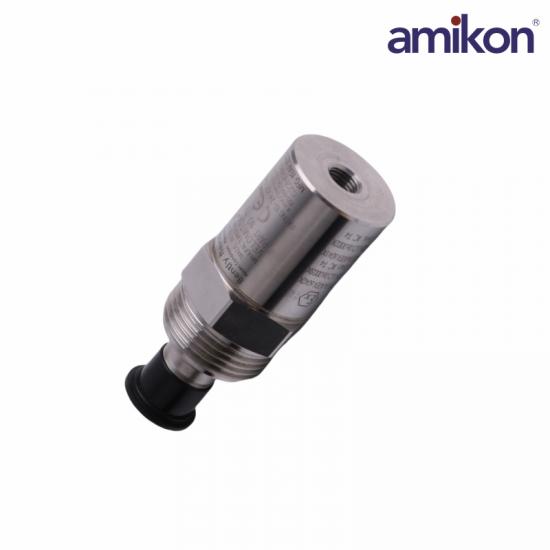

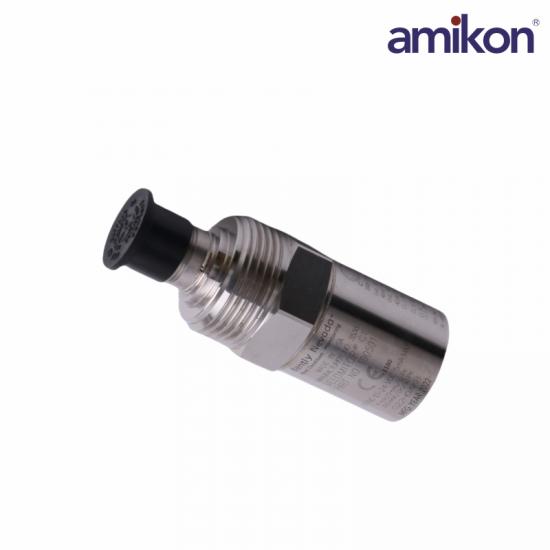

The Velomitor CT Velocity Transducer is a low-frequencyversion of our standard Velomitor Piezo-velocity Sensor. Itsdesign specifically measures casing vibration velocity oncooling tower and air-cooled heat-exchanger fanassemblies that operate at or above 90 rpm (100 to 300 rpmtypical).
The Velomitor CT Transducer can measure vibrationamplitudes at these frequencies as well as the vibrationfrequencies generated by the fan motor and speed reducer.
Frequently Asked Questions
Q: What is the Bently Nevada 190501-20-99-04?
A: It is a specialized Velomitor CT (Cooling Tower) piezo-velocity sensor designed for industrial machinery vibration monitoring.
Q : Why does option "99" include a 32-foot cable?
A: This factory-preinstalled length is optimized to route from the cooling tower fan shroud to an external junction box.
Q : Can I use this to replace a standard Velomitor (like the 330500)?
A: Yes, but it is optimized for low frequencies (down to 1.5 Hz), whereas standard models typically drop off at 4.5 Hz.
Q: What is the standard sensitivity of this transducer?
A: 100 mV/in/s (approx. 3.94 mV/mm/s) ±5%.
Q: What is the frequency response range?
A: 3.0 Hz to 900 Hz for ±1 dB boundaries; 1.5 Hz to 1.0 kHz for ±3 dB boundaries.
Product Applications
Petrochemical plants and oil refineries: Used in large circulating water systems.
Thermal power plants: Used for vibration monitoring of cooling tower fans and turbine casings.
Steel mills and metallurgical plants: Used for blast furnace blowers and large dust removal fans.
Chemical plants: Used for air-cooled heat exchanger fan units.
