Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Manufacturer |
Bently Nevada |
|
Product No |
200150-16-05 |
|
Mounting Stud Option -16 |
3/8-24 to 1/2-13 UNC, 3/4 inch hex stud for robust and stable mechanical connection |
|
Regulatory Approvals -05 |
Complies with CSA, ATEX, and IECEx standards for safe operation in hazardous environments |
|
Sensitivity |
10.2 mV/(m/s²) (100 mV/g) at 80 Hz ±12% |
|
Measurement Range |
±245 m/s² (±25 g) |
|
Frequency Range |
10 to 1000 Hz (600 to 60,000 cpm), referenced to 80 Hz ±10% |
|
Mounted Resonant Frequency |
>20 kHz (>1,200 kcpm) |
|
Amplitude Linearity |
±2% (1 to 10 g pk) |
|
Transverse Sensitivity |
≤7% |
|
Settling Time |
≤300 ms (within 5% of bias) |
|
Excitation Voltage |
4.7 to 5.5 Vdc |
|
Quiescent Current |
Less than 800 µA |
|
Output Bias Voltage |
+2.5 Vdc ±0.23 |

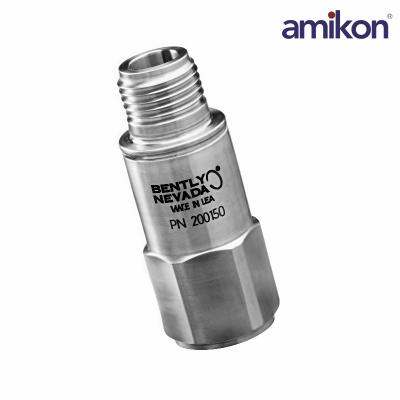

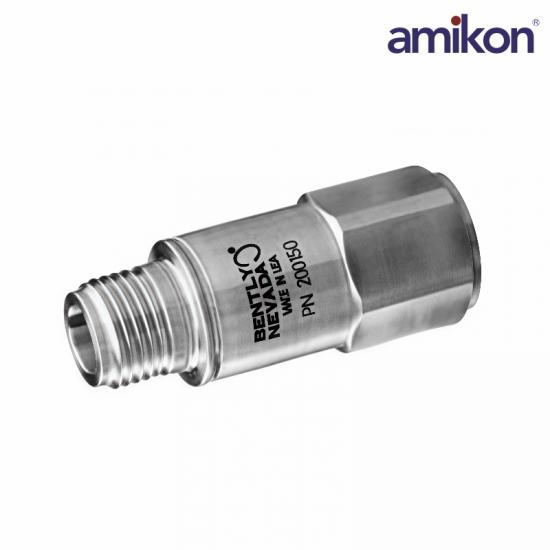

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when it is subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
Frequently Asked Questions
Q1: What is the 200150-16-05?
A1: The 200150-16-05 is a Bently Nevada Trendmaster Pro accelerometer, designed for precise vibration monitoring in industrial machinery and condition-based maintenance systems.
Q2: What is the 200150-16-05 mounted resonant frequency?
A2: It has a mounted resonant frequency greater than 20 kHz (>1200 kcpm), enabling accurate high-frequency vibration detection.
Q3: What is the 200150-16-05 amplitude linearity?
A3: The sensor provides ±2% linearity within the 1 to 10 g peak range, ensuring reliable measurement accuracy.
Q4: What is the 200150-16-05 transverse sensitivity?
A4: The transverse sensitivity is ≤ 7%, minimizing measurement errors from off-axis vibrations.
Q5: What is the 200150-16-05 settling time?
A5: The settling time is ≤ 300 ms (within 5% of bias), allowing fast stabilization after signal changes.
Product Applications
Electric power industry: Vibration measurement of bearing housings and shells of steam turbines, water turbines, generators, fans, feed pumps, etc. in power plants.
Petroleum and chemical industry: Vibration protection and condition monitoring for large rotating machinery such as centrifugal compressors, industrial fans, main shafts, pumps, etc. in oil refineries and petrochemical plants.
Metallurgical industry: High-vibration environments such as blowers, compressors, and large motors in steel mills.
