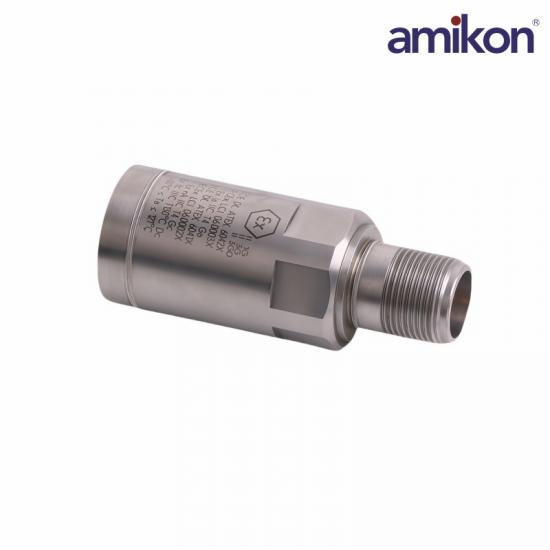

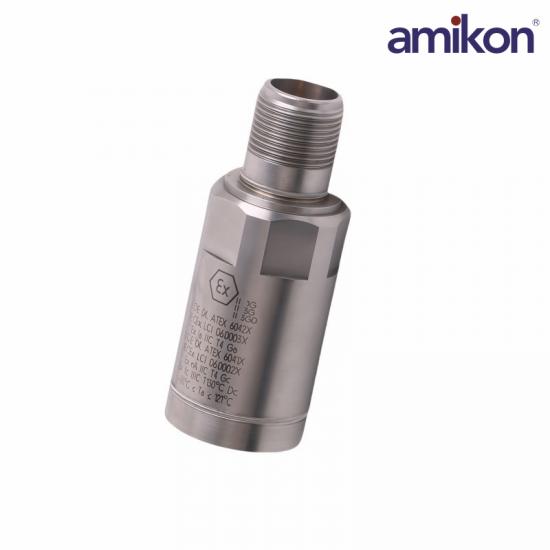

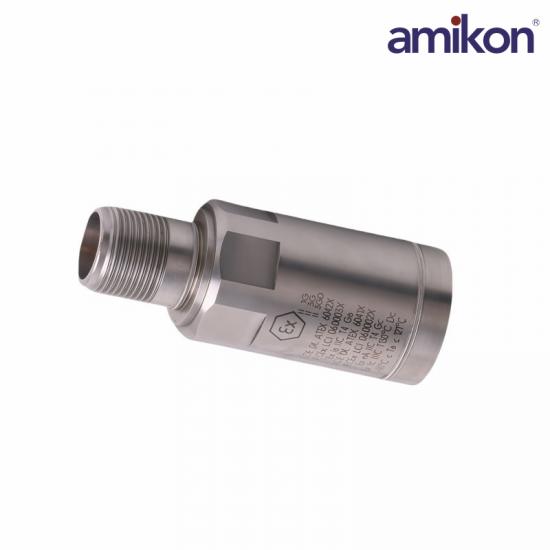

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration parallel to the sensitive axis of the transducer.

Frequently Asked Questions

Q1: What is the 200150-17-CN?

A1: The 200150-17-CN is a Bently Nevada accelerometer designed.

Q2: What is the 200150-17-CN sensitivity?

A2: The accelerometer has a sensitivity of 100 mV/g ±12%, meaning it produces 100 millivolts of output per g of acceleration.

Q3: What is the 200150-17-CN resonant frequency?

A3: The device has a resonant frequency greater than 20 kHz, ensuring it can accurately measure high-frequency vibration signals.

Q4: What is the 200150-17-CN amplitude linearity?

A4: Linearity is ±2% over the 1–10 g peak range, providing precise measurements within the operational range.

Q5: What is the 200150-17-CN transverse sensitivity?

A5: The transverse sensitivity is ≤7%, indicating minimal response to vibrations perpendicular to the sensing axis.

Product Applications

Electric power industry: Monitoring the vibration conditions of core equipment such as generators and steam turbines.

Petroleum and chemical industry: Used for analyzing the operating status of key rotating equipment such as compressors and pumps.

Metallurgy and research: Playing a crucial protective role in vibration measurement of large power equipment and experimental equipment.
