Manufacturer : Bently Nevada

Product No. : 200155-03-CN

Product Type : Accelerometers

Excitation Voltage: 4.7 to 5.5 Vdc

Polarity (Acceleration from Base to Connector): SIG+ positive with respect to SIG-.

Quiescent Current: <800 µA

Output Bias Voltage: +2.5 ± 0.23 Vdc

Sensitivity @ 80 Hz (± 12%): 10.2 mV/(m/s²) (100 mV/g)

Axial Shock Limit: 49,050 m/s² pk (5,000 g pk)

Temperature Range: -40 ºC to +105 ºC (-40 ºF to +221 ºF)

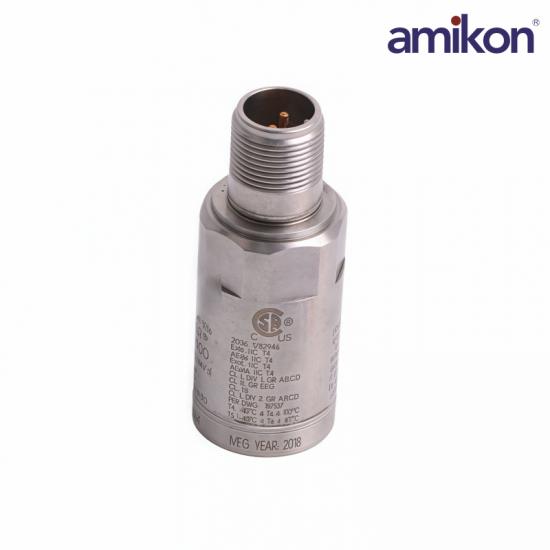

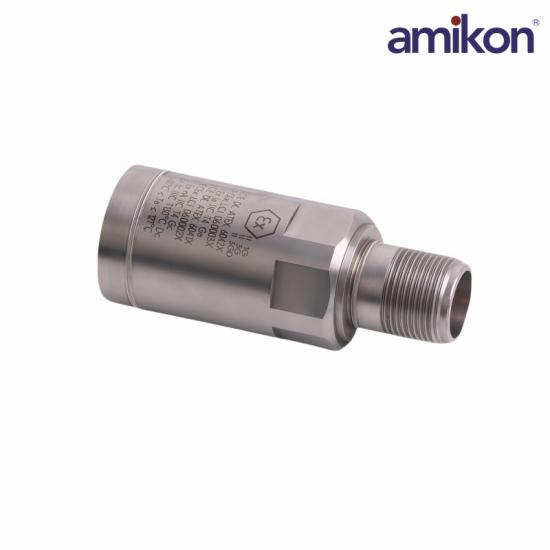

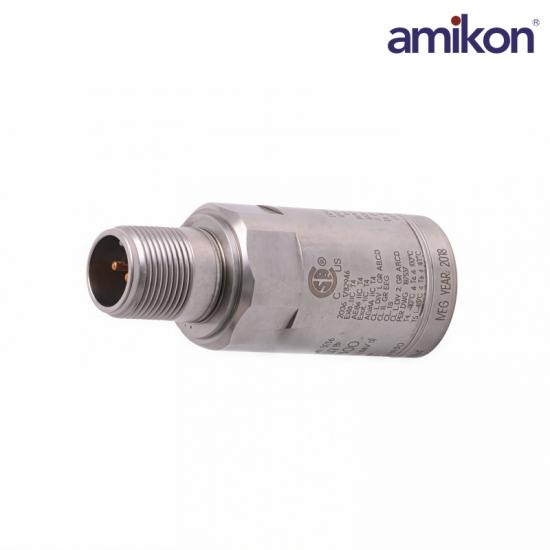

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration parallel to the sensitive axis of the transducer.

Frequently Asked Questions

Q1: What is the 200155-03-CN?

A1: The 200155-03-CN is a Bently Nevada accelerometer, designed for reliable vibration monitoring in industrial machinery and condition-based maintenance systems.

Q2: What is the 200155-03-CN excitation voltage?

A2: It operates with an excitation voltage of 4.7 to 5.5 V DC.

Q3: What is the 200155-03-CN quiescent current?

A3: The accelerometer draws less than 800 µA, ensuring low power consumption.

Q4: What is the 200155-03-CN output bias voltage?

A4: The output bias voltage is +2.5 V DC ± 0.23 V, providing a stable reference signal.

Q5: What is the 200155-03-CN operating temperature range?

A5: It operates within −40°C to +105°C (−40°F to +221°F).

Product Applications

Electric power industry: Vibration monitoring for steam turbines, fans, and pumps.

Petroleum and chemical industry: Condition monitoring for compressors, motors, and key pump sets.

Steel and manufacturing industry: Preventive maintenance for large rotating equipment to avoid unexpected shutdowns.
