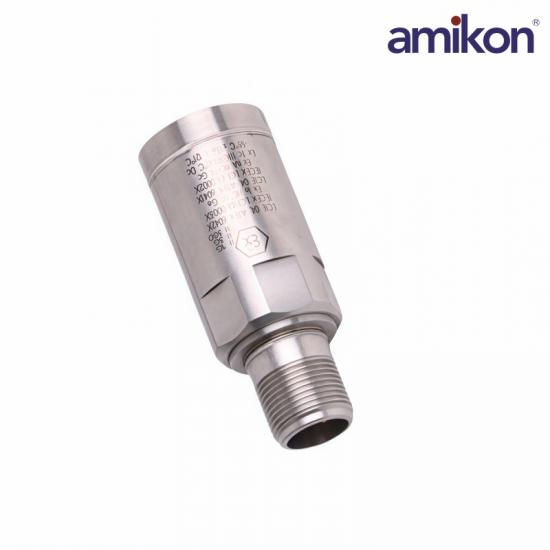

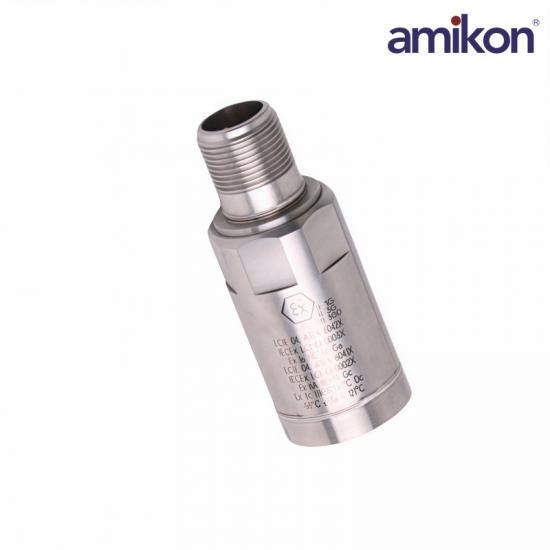

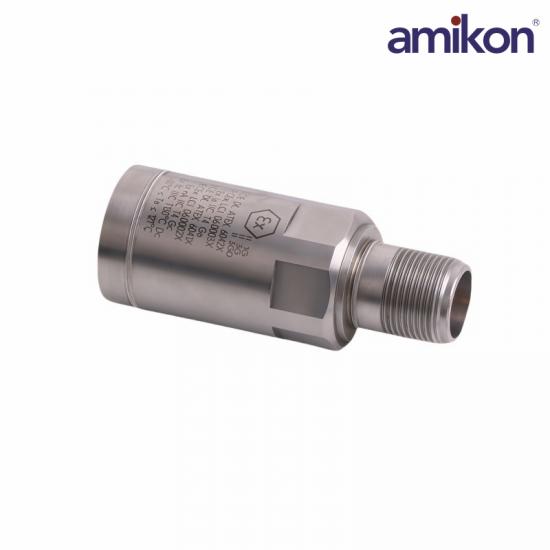

Model: 200155-05-CN

Manufacturer : Bently Nevada

Product Type : Trendmaster Pro Accelerometer

Mounting Stud: 3/8-24 to 1/4-28 UNF, 1-3/8 inch hex plate

Sensitivity at 80 Hz: 10.2mV/(m/s2)or100 mV/g

Range: ±196 m/s2(±20 g)

Frequency: 1.5 Hz to 10,000 Hz(90 to 600,000 cpm)

Bias Voltage: +2.5 V±0.23

Excitation Voltage: 4.7 to 5.5 V DC

Quiescent Current: Below 800 μA

Settling Time: ≤2000 ms

The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

Frequently Asked Questions

Q1: What is the Bently Nevada 200155-05-CN used for?

A: It is a Trendmaster Pro accelerometer designed for machine vibration monitoring and predictive maintenance, helping detect faults such as imbalance, misalignment, and bearing wear.

Q2: What is the 200155-05-CN measurement range of this accelerometer?

A: The measurement range is ±196 m/s² (±20 g), making it suitable for moderate to high vibration applications.

Q3: What is the 200155-05-CN frequency range?

A: The sensor operates within a frequency range of 1.5 Hz to 10,000 Hz (90 to 600,000 cpm), enabling detection of both low- and high-frequency vibration signals.

Q4: What is the 200155-05-CN bias voltage?

A: It provides a bias voltage of +2.5 V ± 0.23 V, ensuring a stable reference for accurate signal processing.

Q5: What is the 200155-05-CN excitation voltage requirement?

A: The required excitation voltage is 4.7 to 5.5 V DC, supporting stable and consistent performance.

Product Applications

Electric power industry: Widely used for vibration monitoring of turbine generators, steam turbines and gas turbines, ensuring the safe operation of large-scale power equipment.

Petroleum and chemical industry: Monitoring the mechanical condition of reciprocating compressors, large pump sets and centrifuges to prevent equipment damage or leakage due to excessive vibration.

Heavy manufacturing and mining: Applied in real-time protection systems of high-load rotating machinery such as large fans and crushers.
