The 20015x Accelerometers are general-purpose, wide-frequency, case-mounted seismic transducers designed for use with Trendmaster proTIMs. The 200150 Accelerometer also operates with the Trendmaster2000 system. It interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.

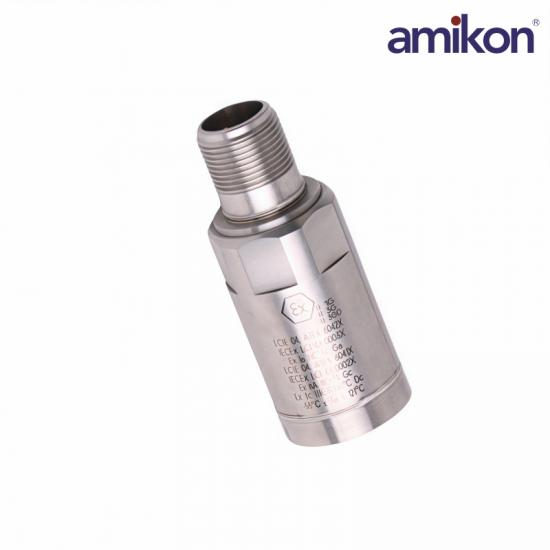

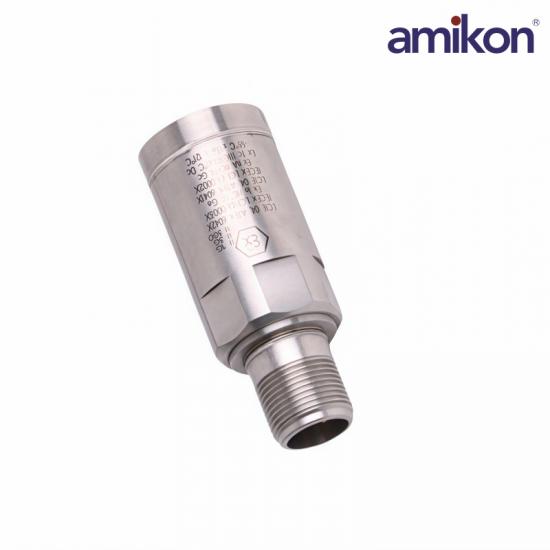

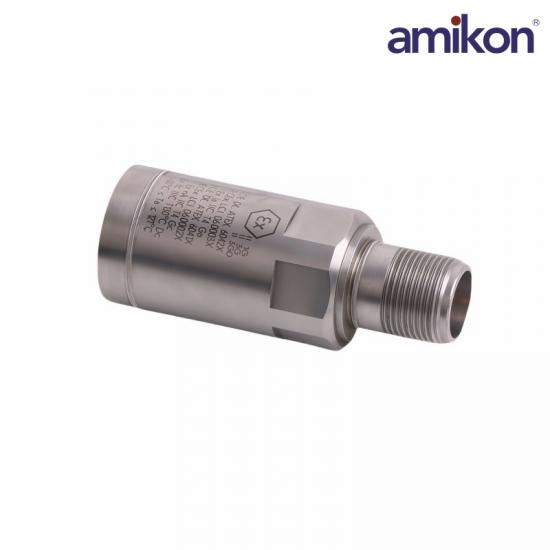

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well-suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration parallel to the sensitive axis of the transducer.

Frequently Asked Questions

Q1: What is the Bently Nevada 200155-16-CN Accelerometer?

A1: It is an industrial vibration accelerometer designed for machinery condition monitoring and predictive maintenance in rotating equipment applications.

Q2: What does the 200155-16-CN mounting stud option “16” indicate?

A2: The “16” option specifies a 3/8-24 to 1/2-13 UNC mounting stud with a 3/4 inch hex stud configuration.

Q3: What is the 200155-16-CN operating temperature range of this accelerometer?

A3: The 200155-16-CN operating temperature range is -40°C to +105°C (-40°F to +221°F).

Q4: What is the 200155-16-CN sensitivity specification of this model?

A4: The sensitivity at 80 Hz is 10.2 mV/(m/s²) (100 mV/g) with a tolerance of ±12%.

Q5: What is the 200155-16-CN quiescent current of this accelerometer?

A5: The 200155-16-CN quiescent current is less than 800 µA.

Product Applications

Power industry: Vibration monitoring of rotating machinery such as fans, pumps, steam turbines, and generator sets.

Petroleum and chemical industry: Monitoring of high-risk, critical production equipment such as compressors, centrifuges, and centrifugal pumps.

Metallurgical industry: Large transmission equipment, blast furnace fans, etc.
