The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.

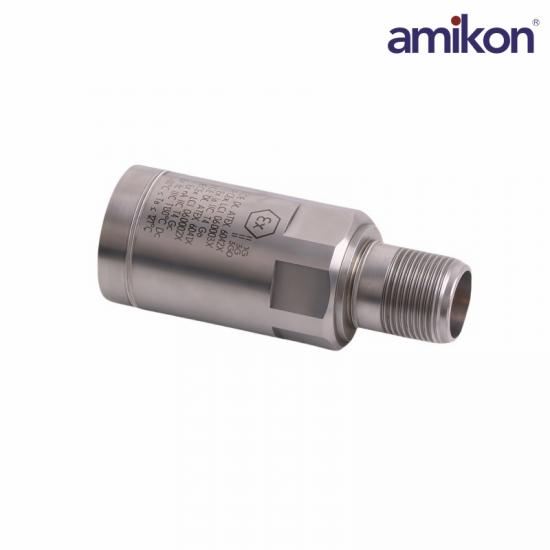

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.

Frequently Asked Questions

Q1: What is the Bently Nevada 200157-21-05?

A1: It is an industrial accelerometer used for machinery condition monitoring, designed to measure vibration levels in rotating equipment.

Q2: What mounting option does “21” represent?

A2: The “21” option indicates a 3/8-24 outer diameter to M6×1 inner diameter mounting configuration with a 1-3/8 inch hex plate stud, ensuring secure and adaptable installation.

Q3: What is the 200157-21-05 excitation voltage range?

A3: The 200157-21-05 accelerometer operates with an excitation voltage of 4.7 to 5.5 V DC.

Q4: What is the 200157-21-05 quiescent current?

A4: The 200157-21-05 quiescent current is less than 800 µA, providing low power consumption.

Q5: What is the 200157-21-05 output bias voltage?

A5: The 200157-21-05 output bias voltage is +2.5 ± 0.23 V DC, ensuring a stable reference signal for measurement.

Product Applications

Power Industry: Monitors vibration and temperature of steam turbines, generators, pumps, and fans to prevent unplanned shutdowns of critical units.

Petroleum and Chemical Industry: Installed on pump sets, compressors, motors, and fans to ensure the safe operation of rotating machinery in flammable, explosive, or harsh environments.

Metallurgy and Heavy Industry: Used to monitor the operating status of large rolling mills, blowers, and other heavy rotating equipment.

Paper and Water Treatment: Performs large-scale automated inspections and data acquisition on Class II auxiliary equipment such as paper machine bearings and water treatment pumps.
