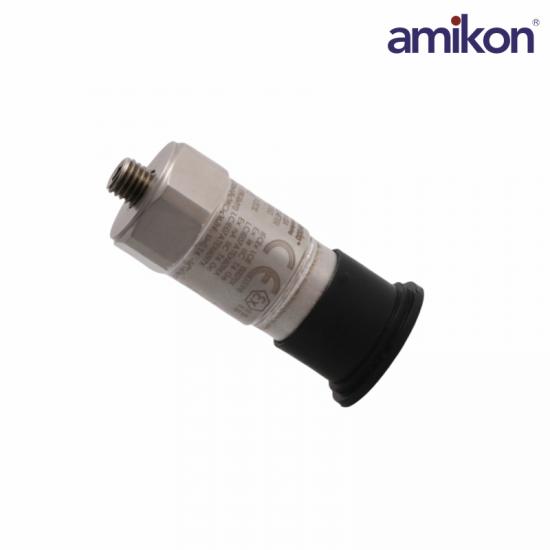

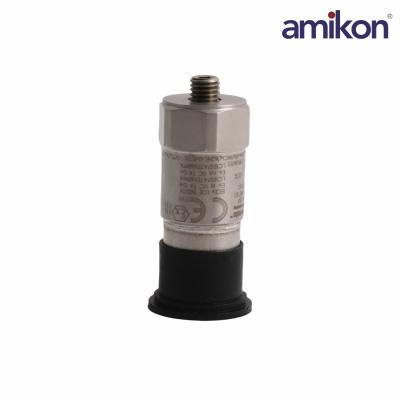

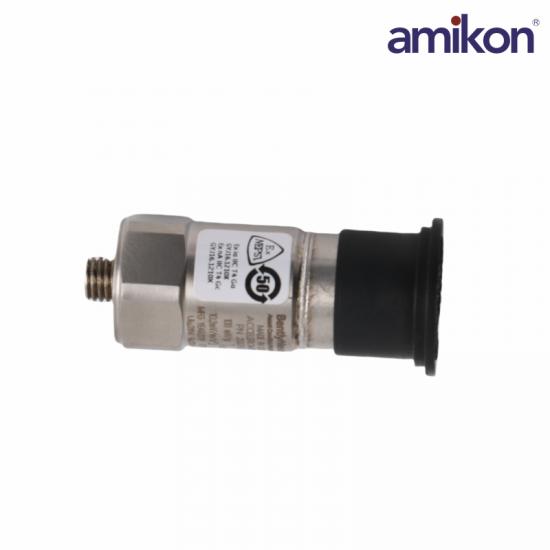

Bently Nevada 200350-10-00-00 Accelerometers

Model Number:200350-10-00-00

Product Type:Accelerometers

Mounting Stud 10: 1/4 -28 Adhesive Stud Mount

Tolerance 00 :100 mV/g ± 20% (10.2 mV/m/s^2 ±20%)

Approvals 00 :No Approvals

Output Bias Voltage: 8 to 12 VDC

Excitation Voltage: 18 to 28 VDC

Constant Current Excitation: 2 to 20 mA

Discharge Time Constant: ≥ 0.3 sec

Settling Time (within 1% of bias): ≤ 2.0 sec

Output Impedance: < 150 ohms

Measurement Range: ± 50 g

Amplitude Linearity: ± 1%

The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01.

The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case.   The design provides an extremely rugged transducer, well suited for harsh industrial environments.   Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable.   A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.

Frequently Asked Questions

1. What is the output bias voltage of the Bently Nevada 200350-10-00-00?

The 200350-10-00-00 accelerometer provides an output bias voltage of 8 to 12 VDC, ensuring stable signal output for accurate vibration monitoring.

2. What excitation voltage is required for this 200350-10-00-00 accelerometer?

The 200350-10-00-00 sensor requires an excitation voltage of 18 to 28 VDC, making it compatible with many industrial condition monitoring systems.

3. What is the 200350-10-00-00 constant current excitation range?

The 200350-10-00-00 constant current excitation range is 2 to 20 mA, allowing the accelerometer to operate reliably with standard constant-current power supplies.

4. Why is the 8 to 12 VDC output bias voltage important?

An 8–12 VDC bias voltage provides a stable operating point for the sensor, helping maintain consistent vibration signal quality and measurement accuracy.

Product Applications

Power Industry: Thermal power plants, hydropower plants, nuclear power plants, and wind power plants.

Oil and Gas: Upstream extraction platforms, midstream pipeline pumping stations, and downstream refineries.

Chemicals and Petrochemicals: Continuous production lines such as ethylene plants, large-scale air separation units, and fertilizer plants.

Metallurgy and Mining: Rolling mills and blast furnace fans in large steel plants, and large crushers in mines.
